Product Model
lfx-d-mini
Selling Points

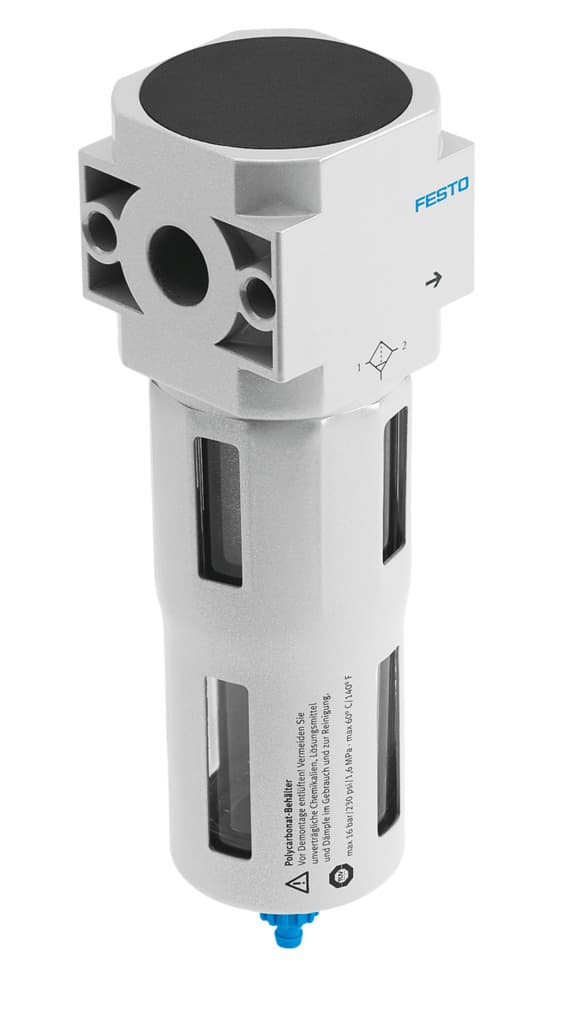

- 1The Festo LFX-D-MINI is a mini-sized filter, making it perfect for space-constrained environments. Its vertical +/-5° mounting position ensures easy installation.
- 2Equipped with both activated carbon and fiber filters, this unit effectively removes liquid and gaseous oil particles from compressed air, ensuring clean air quality.
- 3The filter features a metal bowl guard and is made from die-cast zinc housing, ensuring durability and long-lasting performance.
- 4The LFX-D-MINI can operate with oil lubrication, which is required for further use, and is compliant with VDMA24364-B1/B2-L standards.
- 5Available for line installation or with a mounting bracket, this filter offers flexibility in terms of mounting options, including pneumatic connections without a sub-base.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | Mini | Series | D |
Mounting position | Vertical +/- 5° | Structural design | Active carbon filter Fiber filter |
Bowl guard | Metal bowl guard | Symbol | 00991519 |
Operating pressure | 0psi 232psi | Recommended maximum standard flow | 360l/min |
Max. standard flow rate for air quality class | 360l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [1:4:2] Inert gas |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Storage temperature | -10°C 60°C | Air quality class at the output | Compressed air as per ISO 8573-1:2010 [1:4:1] Inert gas |
Temperature of medium | 5°C 30°C | Residual oil content | 0.003mg/m3 |
Ambient temperature | -10°C 60°C | Product weight | 283g |
Type of mounting | Optionally: Line installation With mounting bracket | Pneumatic connection | Without sub-base |
Pneumatic connection 1 | Battery module | Pneumatic connection 2 | Battery module |
Note on materials | RoHS-compliant | Compressed air filter material | Activated carbon Fabric |
Housing material | Die-cast zinc | Material of bowl | PC |
Manufacturer ID | 532776 |
Specifications may be subject to change without notice
