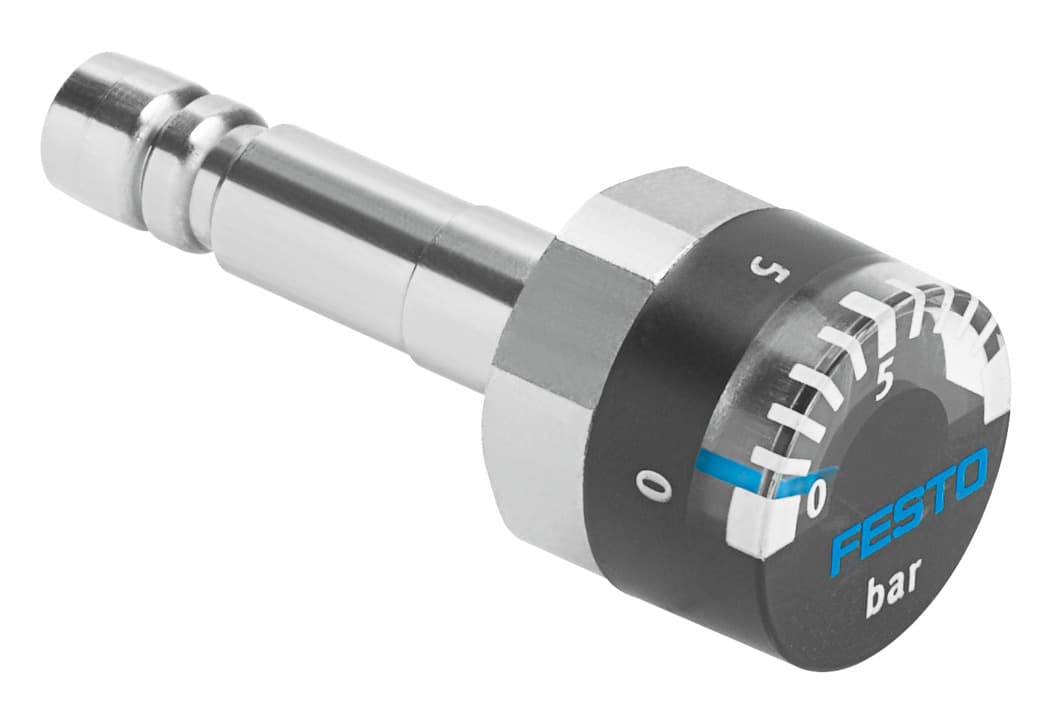

Product Model
ma-15-10-qs-8
Selling Points
- 1The Festo MA-15-10-QS-8 pressure gauge offers a measurement accuracy class of 5, ensuring precise readings in a wide range of applications.
- 2Constructed with a Bourdon tube design without a measuring mechanism, this pressure gauge is durable and reliable for long-term use.
- 3Suitable for inert gases and neutral fluids, the MA-15-10-QS-8 is ideal for various industrial applications where precise pressure control is crucial.
- 4With an operating pressure range of 0 to 10 bar (0 to 145 psi), this pressure gauge can handle a variety of pressure conditions, making it versatile for different setups.
- 5The MA-15-10-QS-8 conforms to the LABS (PWIS) conformity VDMA24364-B2-L and is RoHS-compliant, ensuring it meets stringent industry standards for safety and environmental responsibility.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Display range | 0bar 10bar | Symbol | 00991463 |
Pressure gauge nominal size | 15 | Structural design | Bourdon tube pressure gauge without measuring mechanism |
Type of mounting | Line installation | Operating medium | Inert gas Neutral liquids |
Information on operating and pilot media | No acetylene No oxygen | Operating pressure | 0psi 145psi |
Intermittent load factor | 0.66 | Measurement accuracy class | 5 |
Degree of protection | IP53 | Temperature of medium | -20°C 60°C |
Ambient temperature | -20°C 60°C | LABS (PWIS) conformity | VDMA24364-B2-L |
Note on materials | RoHS-compliant | Connection position | Centered on rear side |
Pneumatic connection | QS-8 | Materials in contact with the media | Brass |
Material of screwed plug | Brass | Housing material | Steel |
Inspection window material | PC | Housing colour | Black |
Product weight | 10g | Scale | Single scale bar (au?en) |
Manufacturer ID | 153385 |
Specifications may be subject to change without notice
