Product Model
ma-15-145-m5-psi
Selling Points

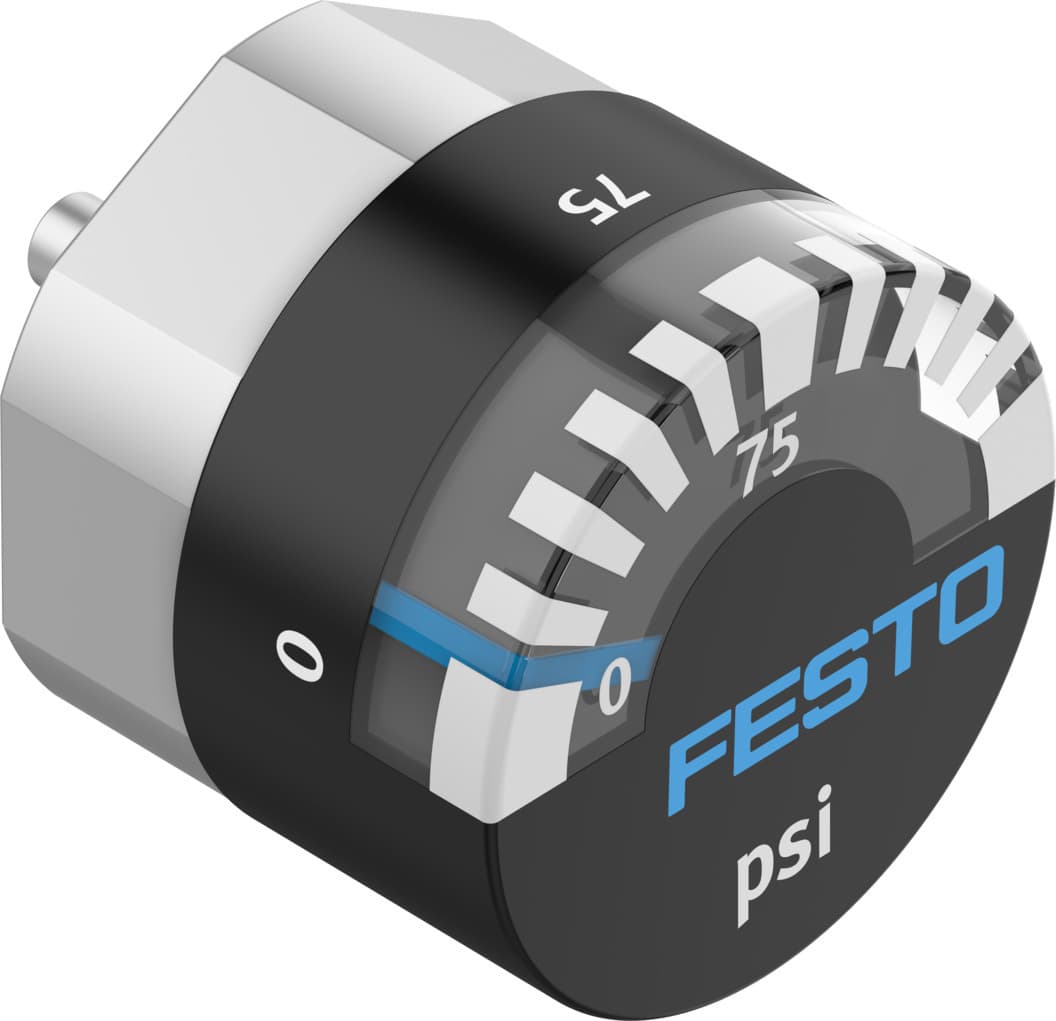

- 1The Festo MA-15-145-M5-PSI pressure gauge is built with a Bourdon tube design, ensuring high accuracy and durability in measuring pressures up to 145 psi.
- 2Suitable for inert gases and neutral liquids, this pressure gauge is ideal for various industrial applications where precise pressure monitoring is required.
- 3With a nominal size of 15 and centered rear-side connection, the MA-15-145-M5-PSI is designed for easy installation in line with your pneumatic systems.
- 4Made from RoHS-compliant materials including brass for the screwed plug, steel for the housing, and PC for the inspection window, this gauge ensures reliability and longevity.
- 5Operating within a media temperature range of -20°C to 60°C and ambient temperature range of -20°C to 60°C, this pressure gauge can handle diverse environmental conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Display range | 0psi 145psi | Symbol | 00991463 |
Pressure gauge nominal size | 15 | Structural design | Bourdon tube pressure gauge without measuring mechanism |
Type of mounting | Line installation | Operating medium | Inert gas Neutral liquids |
Information on operating and pilot media | No acetylene No oxygen | Operating pressure | 0psi 145psi |
Intermittent load factor | 0.66 | Measurement accuracy class | 5 |
Degree of protection | IP53 | Temperature of medium | -20°C 60°C |
Ambient temperature | -20°C 60°C | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Note on materials | RoHS-compliant | Connection position | Centered on rear side |
Pneumatic connection | M5 | Material of screwed plug | Brass |
Housing material | Steel | Inspection window material | PC |
Housing colour | Black | Product weight | 10g |
Scale | Single scale psi (external) | Manufacturer ID | 132341 |
Specifications may be subject to change without notice
