Product Model
ma-23-16-r1/8
Selling Points

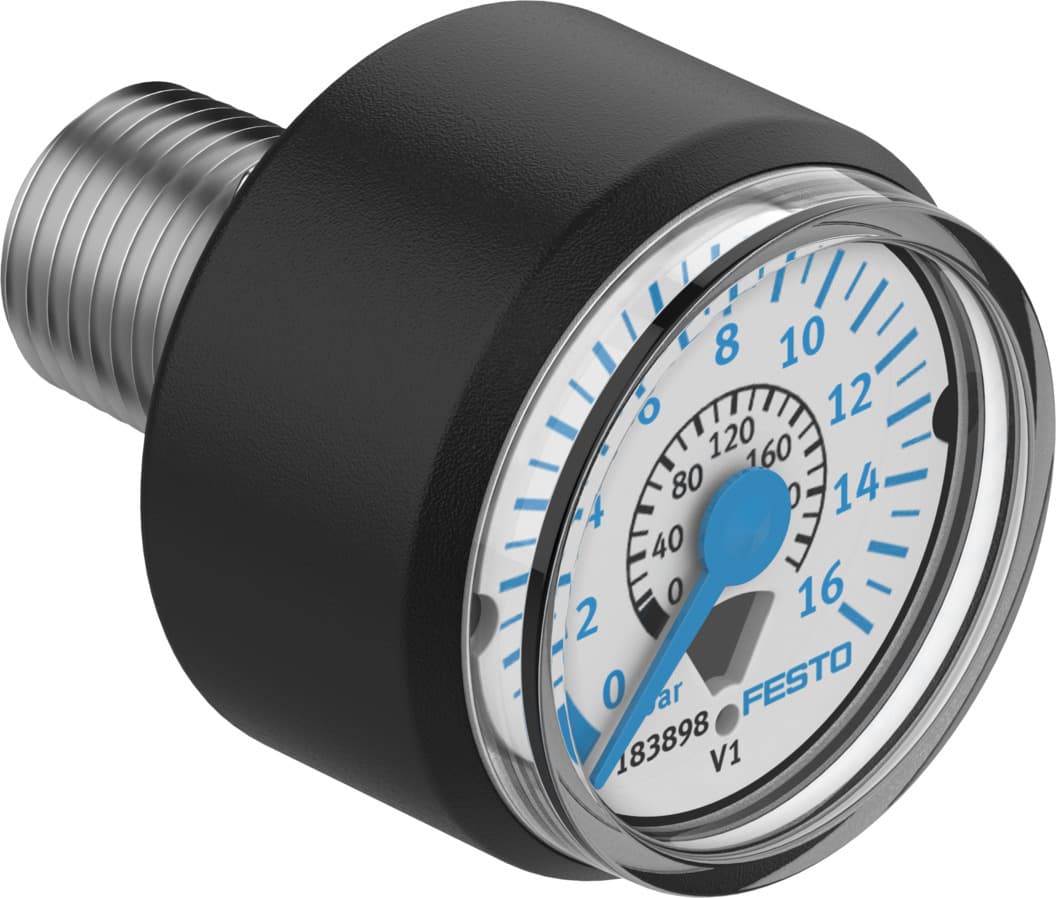

- 1The Festo MA-23-16-R1/8 pressure gauge is designed with a Bourdon tube structure, ensuring high accuracy and reliability in measuring pressures up to 16 bar.
- 2This pressure gauge features a display unit in both bar and psi, making it versatile for various industrial applications.
- 3The MA-23-16-R1/8 is suitable for use with inert gases and neutral fluids, making it a versatile tool for different operating mediums.
- 4The gauge has a nominal size of 23 and is mounted via line installation, providing easy integration into existing systems.
- 5Festo's commitment to quality ensures that this pressure gauge meets industry-leading standards, providing consistent performance and durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Display range | 0psi 232psi | Symbol | 00991463 |
Pressure gauge nominal size | 23 | Structural design | Bourdon tube pressure gauge |
Type of mounting | Line installation | Operating medium | Inert gas Neutral liquids |
Information on operating and pilot media | No acetylene No oxygen | Operating pressure | 0psi 232psi |
Intermittent load factor | 0.6 | Measurement accuracy class | 4 |
Degree of protection | IP44 | Temperature of medium | -20°C 60°C |
Ambient temperature | -20°C 60°C | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Note on materials | RoHS-compliant | Connection position | Centered on rear side |
Pneumatic connection | R1/8 | Materials in contact with the media | Brass |
Material of screwed plug | Brass | Housing material | Brass |
Inspection window material | PC | Housing colour | Black |
Product weight | 27g | Scale | Double scale bar (au?en) psi (internal) |
Manufacturer ID | 183898 |
Specifications may be subject to change without notice
