Product Model
ma-23-6-r1/8
Selling Points

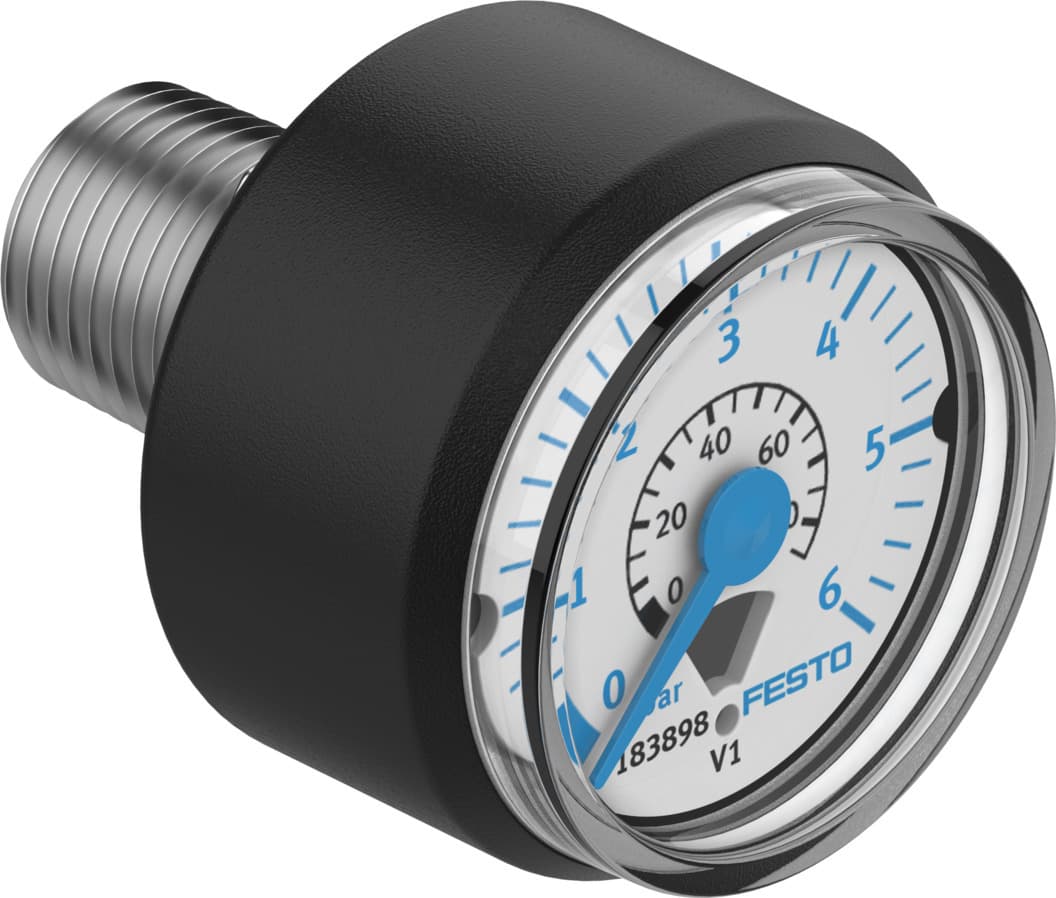

- 1Accurate Measurement: The Festo MA-23-6-R1/8 pressure gauge offers a precise measurement range of 0 to 6 bar, ensuring reliable readings in various applications.
- 2Versatile Installation: Designed for in-line installation, this pressure gauge is easy to integrate into your system, providing a seamless measurement solution.
- 3Durable Construction: Built with high-quality materials, including brass for the housing and plug, and PC for the screen, this gauge is robust and long-lasting.
- 4Wide Operating Range: Suitable for operating media like inert gases and neutral fluids, this pressure gauge operates within a temperature range of -20°C to 60°C.
- 5Enhanced Protection: Featuring an IP44 protection class, this gauge is designed to withstand harsh environments and ensure continuous operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Display range | 1psi 87psi | Symbol | 00991463 |
Pressure gauge nominal size | 23 | Structural design | Bourdon tube pressure gauge |
Type of mounting | Line installation | Operating medium | Inert gas Neutral liquids |
Information on operating and pilot media | No acetylene No oxygen | Operating pressure | 0psi 87psi |
Intermittent load factor | 0.6 | Measurement accuracy class | 4 |
Degree of protection | IP44 | Temperature of medium | -20°C 60°C |
Ambient temperature | -20°C 60°C | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Note on materials | RoHS-compliant | Connection position | Centered on rear side |
Pneumatic connection | R1/8 | Materials in contact with the media | Brass |
Material of screwed plug | Brass | Housing material | Brass |
Inspection window material | PC | Housing colour | Black |
Product weight | 27g | Scale | Double scale bar (au?en) psi (internal) |
Manufacturer ID | 183896 |
Specifications may be subject to change without notice
