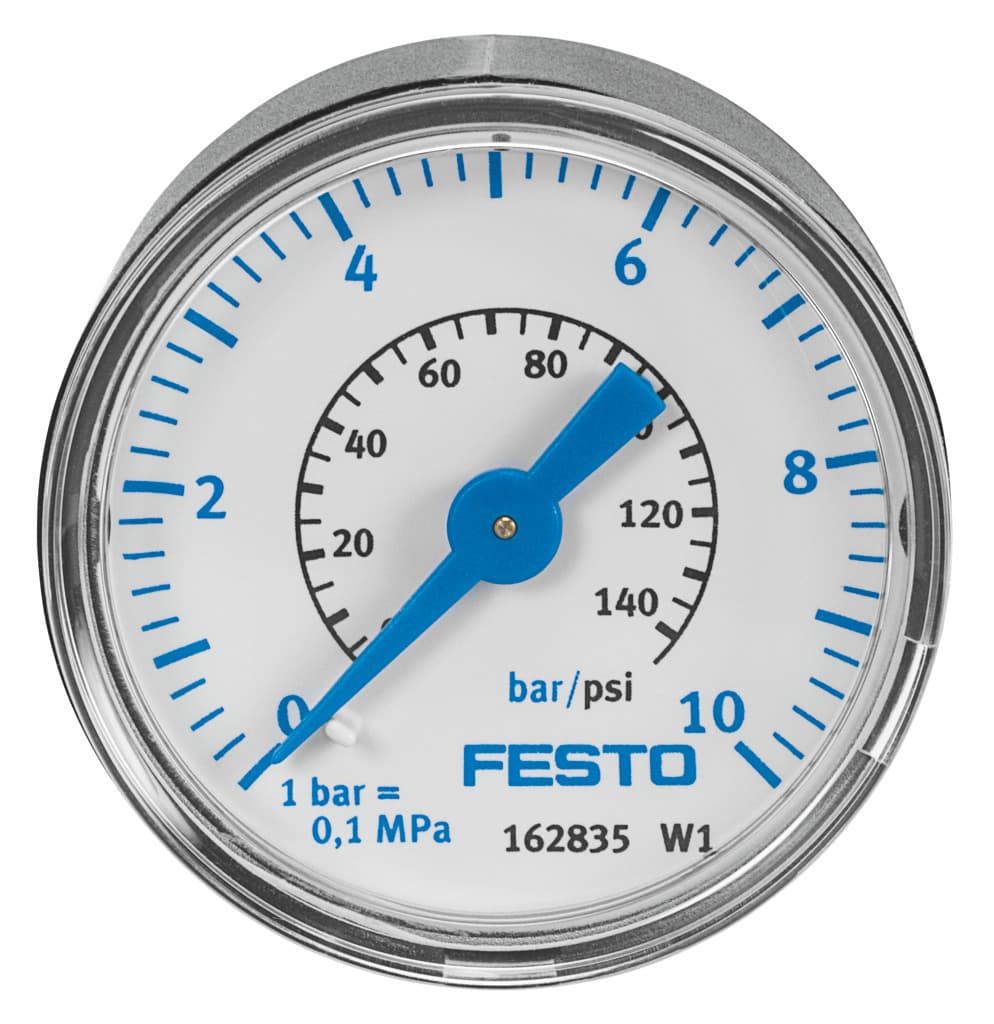

Festo MA-40-10-1/8 Pressure Gauge: High Accuracy and Reliability

Selling Points

1The Festo MA-40-10-1/8 pressure gauge offers a high-accuracy display range of 0 bar to 10 bar (0 psi to 145 psi), making it suitable for various industrial applications.
2This pressure gauge is built with a robust Bourdon-tube design, ensuring reliable and consistent measurements over time.
3The MA-40-10-1/8 gauge is designed for line installation, providing easy integration into your existing systems without complex wiring.
4It conforms to the international standard EN 837-1, ensuring compliance with global quality standards in pressure measurement.
5With its inert operating medium, the Festo MA-40-10-1/8 pressure gauge maintains high accuracy and reliability in a variety of environments.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Display range	0psi 145psi	Symbol	00991463
Conforms to standard	EN 837-1	Pressure gauge nominal size	40
Explosion prevention and protection	Observe the information on the certificate Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)	Structural design	Bourdon tube pressure gauge
Type of mounting	Line installation	Operating medium	Inert gas Neutral liquids
Information on operating and pilot media	No acetylene No oxygen	Operating pressure	0psi 145psi
Intermittent load factor	0.66	Measurement accuracy class	2.5
Degree of protection	IP43	Temperature of medium	-20°C 60°C
Ambient temperature	-20°C 60°C	LABS (PWIS) conformity	VDMA24364-B2-L
Note on materials	RoHS-compliant	Connection position	Centered on rear side
Pneumatic connection	G1/8	Materials in contact with the media	Brass
Material of screwed plug	Brass	Housing material	ABS
Inspection window material	PS	Housing colour	Black
Product weight	60g	Scale	Double scale bar (au?en) psi (internal)
Manufacturer ID	359874

Specifications may be subject to change without notice
