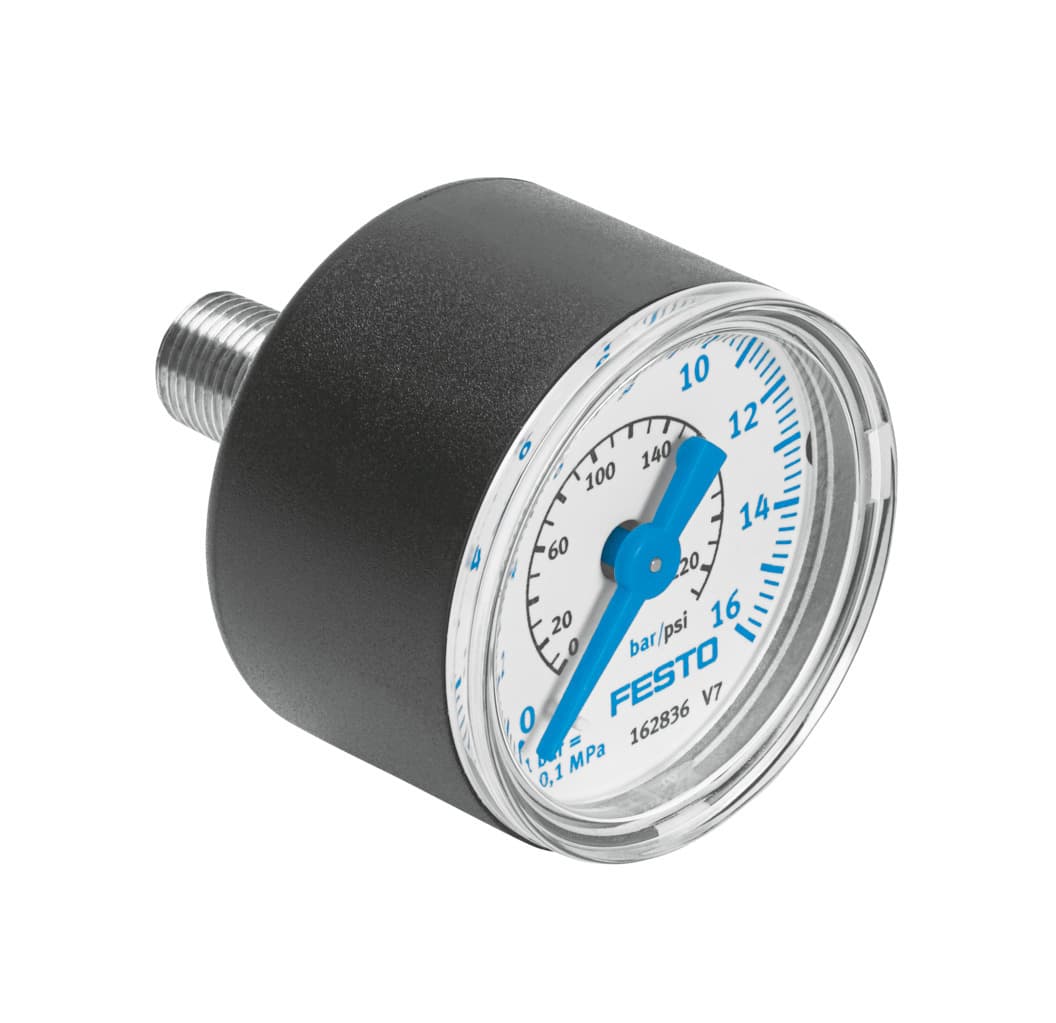

Festo MA-40-16-G1/4-EN Pneumatic Pressure Gauge - High Accuracy and Reliability

Selling Points

1The Festo MA-40-16-G1/4-EN pressure gauge is built to provide precise measurements, ensuring reliable data for your industrial applications.
2With an indicating range of 0 to 16 bar, this gauge is versatile and suitable for a variety of pneumatic systems, offering flexibility in your operations.
3Designed with a durable housing made from ABS material, the MA-40-16-G1/4-EN is built to withstand harsh industrial environments, ensuring long-lasting performance.
4This pressure gauge conforms to ATEX standards, making it safe for use in hazardous environments, such as those found in Zone 1 and Zone 2 areas.
5Featuring an in-line installation design and a centered, rear-side connection, the MA-40-16-G1/4-EN is easy to integrate into your existing systems, minimizing downtime and installation costs.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Display range	0psi 232psi	Symbol	00991463
Conforms to standard	EN 837-1	Pressure gauge nominal size	40
Explosion prevention and protection	Observe the information on the certificate Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)	Structural design	Bourdon tube pressure gauge
Type of mounting	Line installation	Operating medium	Inert gas Neutral liquids
Information on operating and pilot media	No acetylene No oxygen	Operating pressure	0psi 232psi
Intermittent load factor	0.66	Measurement accuracy class	2.5
Degree of protection	IP43	Temperature of medium	-20°C 60°C
Ambient temperature	-20°C 60°C	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Note on materials	RoHS-compliant	Connection position	Centered on rear side
Pneumatic connection	G1/4	Materials in contact with the media	Brass
Material of screwed plug	Brass	Housing material	ABS
Inspection window material	PS	Housing colour	Black
Product weight	70g	Scale	Double scale bar (au?en) psi (internal)
Manufacturer ID	183901

Specifications may be subject to change without notice
