Product Model

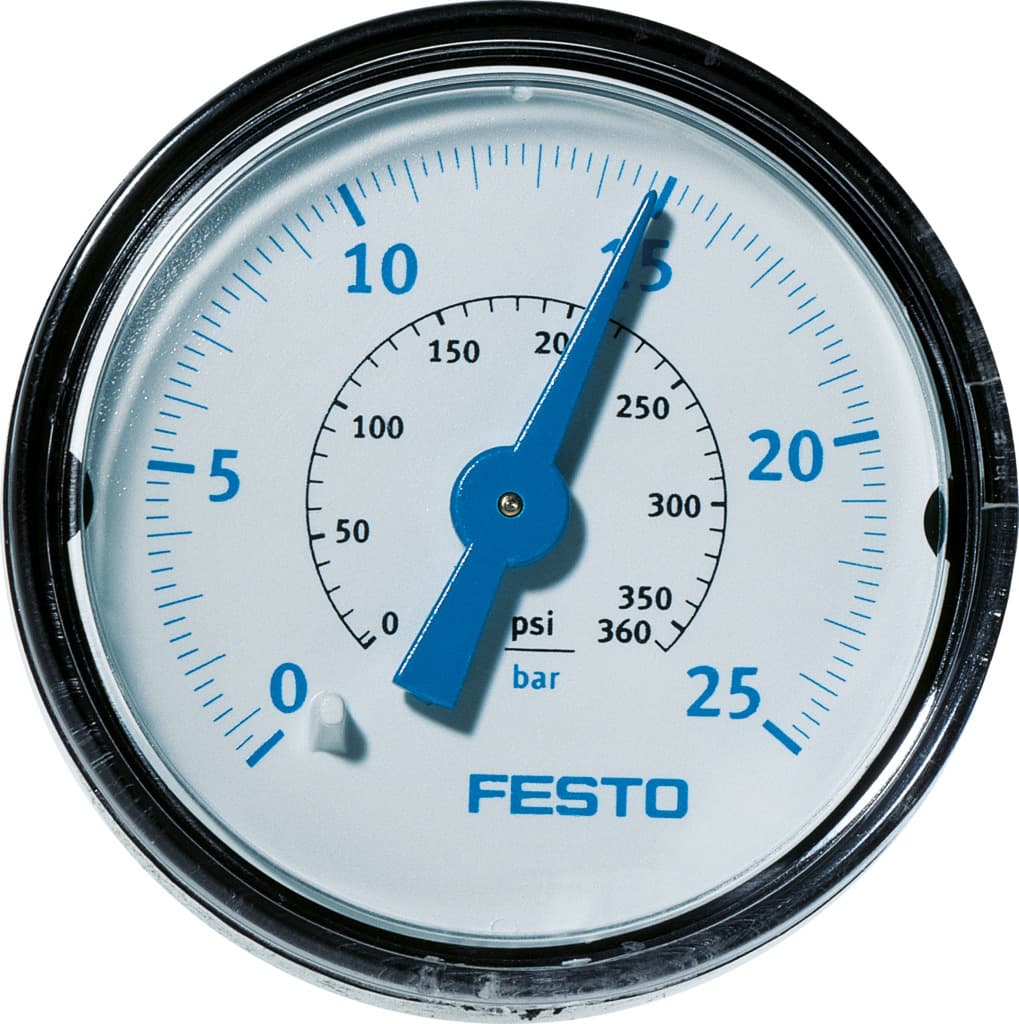

ma-40-25-1/8-en

Selling Points
- 1High Accuracy Measurement: The Festo MA-40-25-1/8-EN pressure gauge provides precise measurements with a high degree of accuracy, ensuring reliable data in various industrial settings.
- 2Wide Pressure Range: This pressure gauge offers a wide range of 0 to 25 bar, making it suitable for diverse applications requiring different pressure levels.
- 3Compact Design: With a compact design, the MA-40-25-1/8-EN is easy to install and integrate into existing systems, saving space and enhancing efficiency.
- 4Durable Construction: Built with durable materials, this pressure gauge ensures long-lasting performance and resistance to harsh environmental conditions.
- 5Easy Installation: Featuring a simple mounting system, the MA-40-25-1/8-EN can be easily installed in-line, providing quick and hassle-free setup in various industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Parameter | Value | Parameter | Value |
---|---|---|---|
Display range | 0psi 362.5psi | Symbol | 00991463 |
Conforms to standard | EN 837-1 | Pressure gauge nominal size | 40 |
Explosion prevention and protection | Observe the information on the certificate Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) | Structural design | Bourdon tube pressure gauge |
Type of mounting | Line installation | Operating medium | Inert gas Neutral liquids |
Information on operating and pilot media | No acetylene No oxygen | Operating pressure | 0psi 362.5psi |
Intermittent load factor | 0.66 | Measurement accuracy class | 2.5 |
Degree of protection | IP43 | Temperature of medium | -20°C 60°C |
Ambient temperature | -20°C 60°C | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Note on materials | RoHS-compliant | Connection position | Centered on rear side |
Pneumatic connection | G1/8 | Materials in contact with the media | Brass |
Material of screwed plug | Brass | Housing material | ABS |
Inspection window material | PS | Housing colour | Black |
Product weight | 60g | Scale | Double scale bar (au?en) psi (internal) |
Manufacturer ID | 526167 |
Specifications may be subject to change without notice
