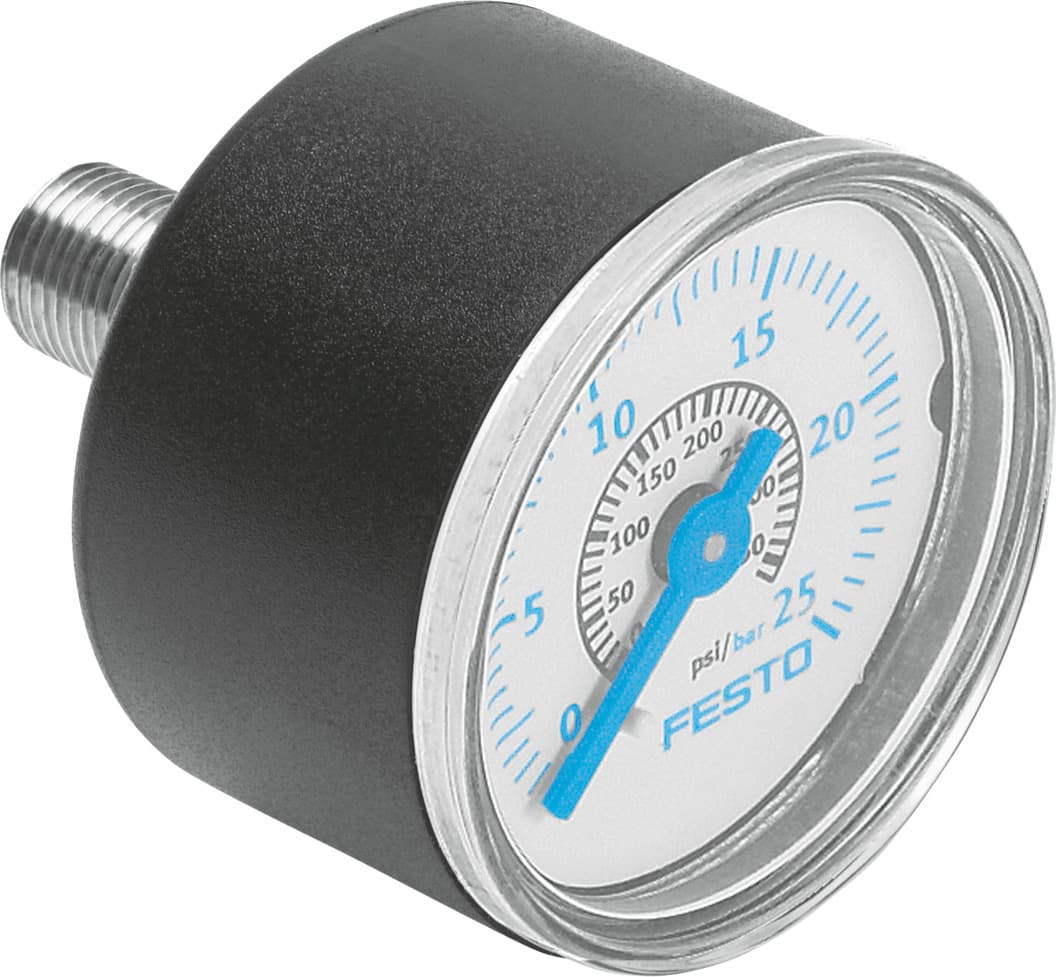

Festo MA-40-25-G1/4-EN Pneumatic Pressure Gauge - High Accuracy and Reliability

Selling Points

1The Festo MA-40-25-G1/4-EN pressure gauge offers precise measurements with a 0...+25bar display range, ensuring reliable operation in various industrial settings.
2Equipped with a Bourdon tube design, this gauge provides accurate pressure readings and is suitable for applications requiring precise measurement.
3The MA-40-25-G1/4-EN features a G1/4" threaded port, facilitating easy connection to pneumatic systems and ensuring secure operation.
4The gauge operates within a temperature range of -20°C to +60°C, making it suitable for a variety of industrial environments.
5With an IP43 degree of protection, the MA-40-25-G1/4-EN is designed to withstand harsh industrial conditions, ensuring durability and long service life.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Display range	0psi 362.5psi	Symbol	00991463
Conforms to standard	EN 837-1	Pressure gauge nominal size	40
Explosion prevention and protection	Observe the information on the certificate Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)	Structural design	Bourdon tube pressure gauge
Type of mounting	Line installation	Operating medium	Inert gas Neutral liquids
Information on operating and pilot media	No acetylene No oxygen	Operating pressure	0psi 362.5psi
Intermittent load factor	0.66	Measurement accuracy class	2.5
Degree of protection	IP43	Temperature of medium	-20°C 60°C
Ambient temperature	-20°C 60°C	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Note on materials	RoHS-compliant	Connection position	Centered on rear side
Pneumatic connection	G1/4	Materials in contact with the media	Brass
Material of screwed plug	Brass	Housing material	ABS
Inspection window material	PS	Housing colour	Black
Product weight	70g	Scale	Double scale bar (au?en) psi (internal)
Manufacturer ID	183902

Specifications may be subject to change without notice
