Product Model
ma-50-16-1/4
Selling Points

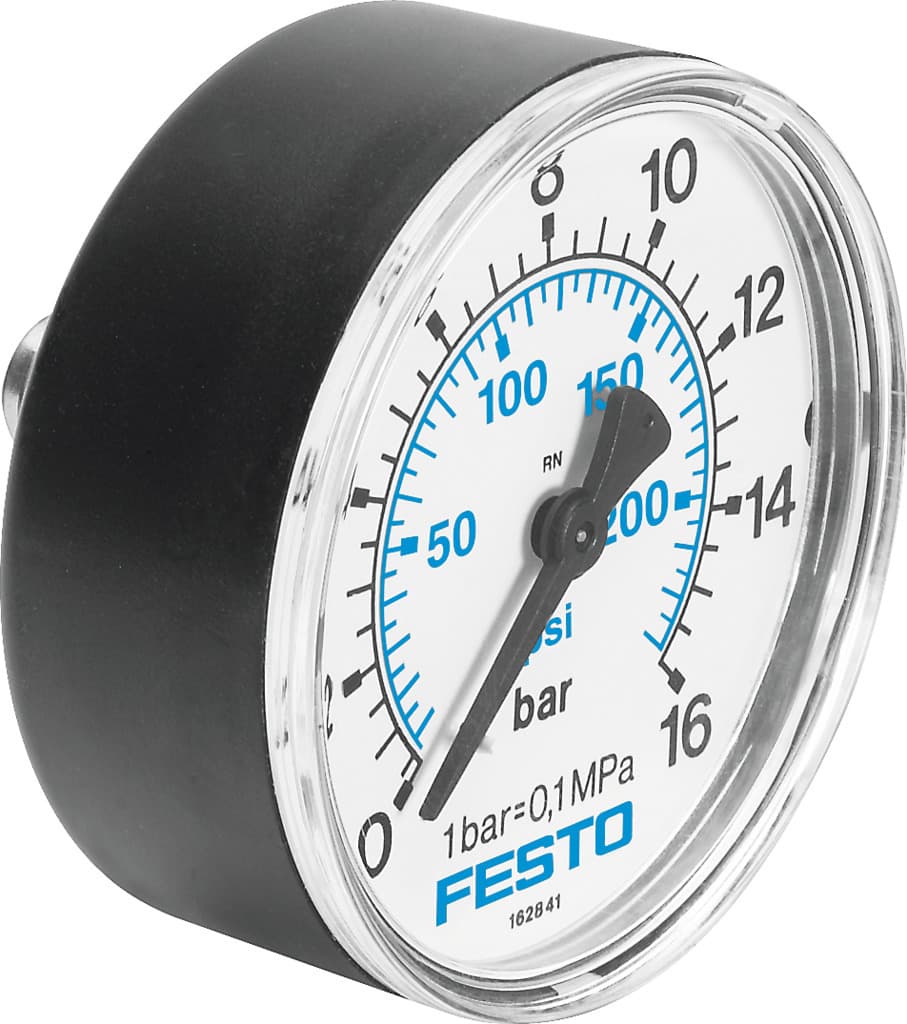

- 1Precision Measurement: The Festo MA-50-16-1/4 pressure gauge offers accurate readings within the range of 0 bar to 16 bar, ensuring reliable measurement in industrial settings.
- 2ATEX Compliance: This pressure gauge is designed for use in hazardous environments, conforming to ATEX standards for Zone 1, Zone 2, Zone 21, and Zone 22.
- 3Robust Design: Built with a Bourdon tube design, the MA-50-16-1/4 is a durable and reliable choice for various operating mediums, including inert gases and neutral liquids.
- 4Easy Installation: Featuring an in-line installation type, this pressure gauge can be easily integrated into your system, providing a straightforward setup process.
- 5Compliance and Certifications: The MA-50-16-1/4 pressure gauge meets the EN 837-1 standard and is RoHS-compliant, ensuring it meets international quality and safety standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Display range | 0psi 232psi | Symbol | 00991463 |
Conforms to standard | EN 837-1 | Pressure gauge nominal size | 50 |
Explosion prevention and protection | Observe the information on the certificate Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) | Structural design | Bourdon tube pressure gauge |
Type of mounting | Line installation | Operating medium | Inert gas Neutral liquids |
Information on operating and pilot media | No acetylene No oxygen | Operating pressure | 0psi 232psi |
Intermittent load factor | 0.66 | Measurement accuracy class | 2.5 |
Degree of protection | IP43 | Temperature of medium | -20°C 60°C |
Ambient temperature | -20°C 60°C | LABS (PWIS) conformity | VDMA24364-B2-L |
Note on materials | RoHS-compliant | Connection position | Centered on rear side |
Pneumatic connection | G1/4 | Materials in contact with the media | Brass |
Material of screwed plug | Brass | Housing material | ABS |
Inspection window material | PS | Housing colour | Black |
Product weight | 70g | Scale | Double scale bar (au?en) psi (internal) |
Manufacturer ID | 356759 |
Specifications may be subject to change without notice
