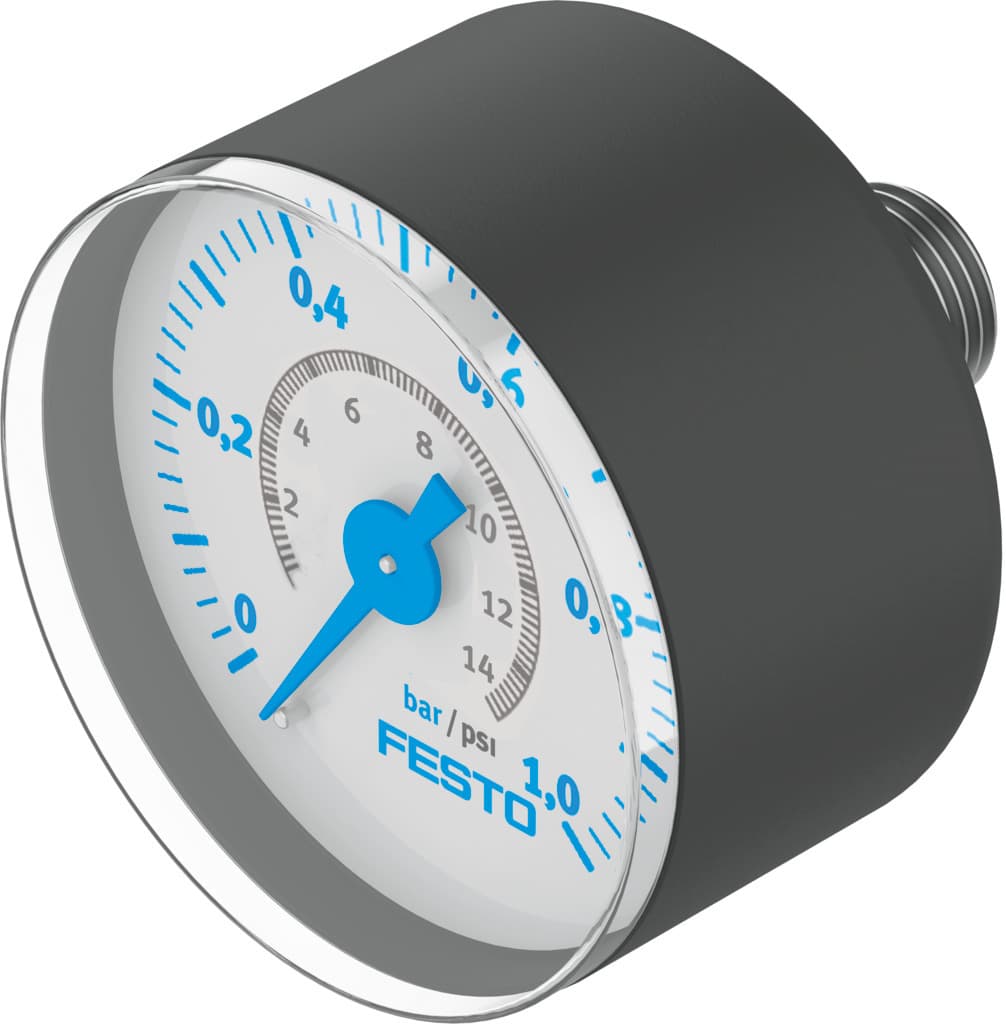

Festo MAP-40-1-1/8-EN Precision Pressure Gauge - High Accuracy and Reliability

Selling Points

1The Festo MAP-40-1-1/8-EN pressure gauge offers a measurement accuracy class of 1.6, ensuring precise readings in your industrial processes.
2Equipped with a Bourdon tube pressure gauge design, this device provides reliable and consistent measurements across a wide range of operating pressures.
3Suitable for operating with inert gases and neutral fluids, the MAP-40-1-1/8-EN is ideal for applications where gas purity is crucial.
4Built with a durable housing made of black polycarbonate (PC) and a sight glass made of SAN, this gauge can withstand various environmental conditions.
5Featuring an in-line installation type with a centered rear connection position, the MAP-40-1-1/8-EN is designed for straightforward integration into your system.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Display range	0psi 14.5psi	Symbol	00991463
Conforms to standard	EN 837-1	Pressure gauge nominal size	40
Explosion prevention and protection	Observe the information on the certificate Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)	Structural design	Bourdon tube pressure gauge
Type of mounting	Line installation	Operating medium	Inert gas Neutral liquids
Information on operating and pilot media	No acetylene No oxygen	Operating pressure	0psi 14.5psi
Intermittent load factor	0.66	Measurement accuracy class	1.6
Degree of protection	IP43	Temperature of medium	-20°C 60°C
Ambient temperature	-20°C 60°C	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Note on materials	RoHS-compliant	Connection position	Centered on rear side
Pneumatic connection	R1/8	Materials in contact with the media	Brass
Material of screwed plug	Brass	Housing material	PBT
Inspection window material	PS	Housing colour	Black
Product weight	60g	Scale	Double scale bar (au?en) psi (internal)
Manufacturer ID	161126

Specifications may be subject to change without notice
