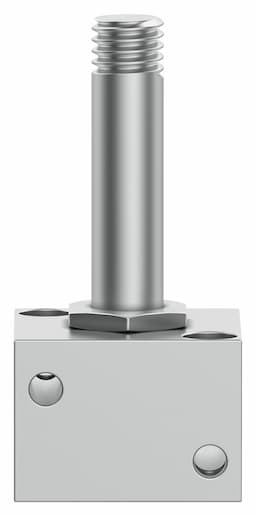

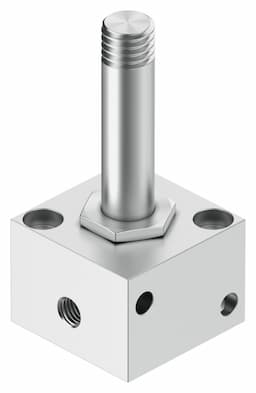

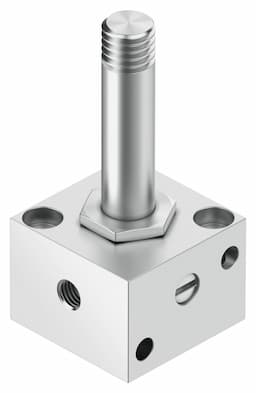

Product Model
mfh-2-m5
Selling Points
- 1The Festo MFH-2-M5 solenoid valve offers a 2/2-way, closed, monostable function, ensuring precise control in pneumatic systems.
- 2With electric actuation and a standard nominal flow rate of 75 l/min, this valve is designed for efficient operation in various industrial applications.
- 3The valve operates within a pressure range of 0 to 8 bar, making it suitable for a wide range of pneumatic systems.
- 4The MFH-2-M5 features a poppet seat design and mechanical spring reset, providing reliable and durable performance.
- 5This valve supports lubricated operation and is compliant with LABS (PWIS) standards, ensuring high-quality performance in demanding environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 2/2, closed, monostable | Actuation type | Electrical |
Standard nominal flow rate | 75l/min | Pneumatic working port | M5 |
Operating pressure | 0bar 8bar | Structural design | Plate seat |
Reset method | Mechanical spring | Nominal width | 1.5mm |
Exhaust air function | Without flow control option | Sealing principle | Soft |
Mounting position | Any | Manual override | Detenting |
Type of control | Direct | Flow direction | Non-reversible |
Symbol | 00991398 | Switching time off | 5ms |
On switching time | 6.2ms | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | LABS (PWIS) conformity | VDMA24364-B2-L |
Temperature of medium | -15°C 60°C | Ambient temperature | -15°C 40°C |
Type of mounting | With through-hole | Pneumatic connection 1 | M5 |
Pneumatic connection 2 | M5 | Manufacturer ID | 4573 |
Specifications may be subject to change without notice
