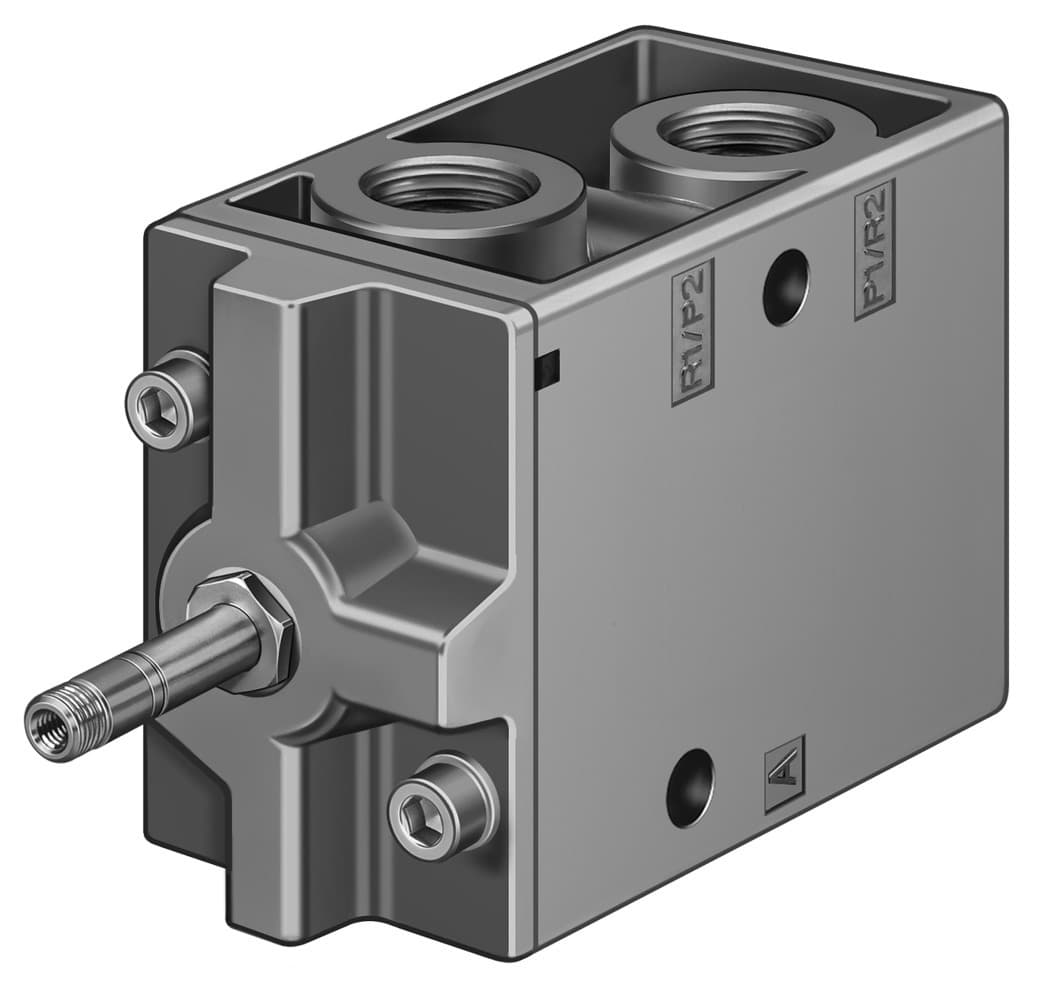

Product Model
mfh-3-1/2
Selling Points
- 1The MFH-3-1/2 pneumatic solenoid valve offers a standard nominal flow rate of 3700 l/min, making it suitable for high-demand applications.
- 2Built with die-cast aluminum, this valve ensures long-lasting performance and resistance to corrosion.
- 3The valve can be mounted on a manifold rail or through a hole, providing flexibility in installation.
- 4Utilizing a soft sealing principle, the MFH-3-1/2 ensures reliable operation and minimal maintenance.
- 5Operating between -10°C and 60°C, this valve can handle various environmental conditions, from cold to warm temperatures.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 3/2, closed, monostable | Actuation type | Electrical |
Width | 52mm | Standard nominal flow rate | 3700l/min |
Pneumatic working port | G1/2 | Operating voltage | Via solenoid coil, to be ordered separately |
Operating pressure | 1.5bar 8bar | Structural design | Plate seat |
Reset method | Mechanical spring | Certification | c UL us - Recognized (OL) |
Degree of protection | IP65 | Nominal width | 14mm |
Width dimension | 69mm | Exhaust air function | With flow control option |
Sealing principle | Soft | Mounting position | Any |
Manual override | Detenting | Type of control | Pilot-controlled |
Flow direction | Non-reversible | Symbol | 00991041 |
Lap | Underlap | b-value | 0.3 |
Switching time off | 90ms | On switching time | 18ms |
Max. positive test pulse with 0 signal | 2200μs | Max. negative test pulse on 1 signal | 3700μs |
Coil characteristics | See solenoid coil, to be ordered separately | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | -20°C 60°C |
Temperature of medium | -10°C 60°C | Ambient temperature | -5°C 40°C |
Product weight | 1100g | Electrical connection | Via F coil, to be ordered separately |
Type of mounting | Optionally: On terminal strip With through-hole | Pilot exhaust air port 82 | M5 |
Pneumatic connection 1 | G1/2 | Pneumatic connection 2 | G1/2 |
Pneumatic connection 3 | G1/2 | Note on materials | RoHS-compliant |
Seals material | NBR | Housing material | Die-cast aluminum |
Manufacturer ID | 9857 |
Specifications may be subject to change without notice
