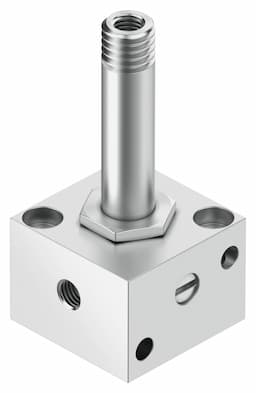

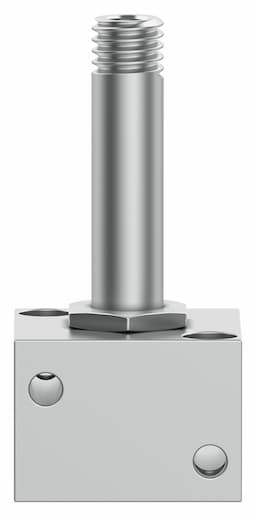

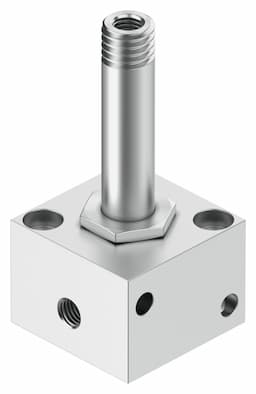

Product Model
mfh-3-m5
Selling Points
- 1The Festo MFH-3-M5 solenoid valve offers a 3/2-way, closed, monostable operation, ensuring precise control over compressed air flows.
- 2With an electric actuation type and direct control, this valve provides fast and reliable switching times of 16 ms off and 9 ms on.
- 3The valve features a standard nominal flow rate of 58 l/min, making it suitable for various pneumatic applications.
- 4The MFH-3-M5 operates within a pressure range of 0 to 8 bar and is designed with a poppet seat for efficient airflow management.
- 5This solenoid valve is compliant with ISO 8573-1:2010 [7:4:4] standards and can operate in temperatures ranging from -15°C to 60°C, ensuring broad compatibility and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 3/2, closed, monostable | Actuation type | Electrical |
Standard nominal flow rate | 58l/min | Pneumatic working port | M5 |
Operating pressure | 0bar 8bar | Structural design | Plate seat |
Reset method | Mechanical spring | Certification | c UL us - Recognized (OL) |
Nominal width | 1.3mm | Exhaust air function | Without flow control option |
Sealing principle | Soft | Mounting position | Any |
Manual override | Non-detenting | Type of control | Direct |
Flow direction | Non-reversible | Symbol | 00991308 |
Switching time off | 16ms | On switching time | 9ms |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
LABS (PWIS) conformity | VDMA24364-B2-L | Temperature of medium | -15°C 60°C |
Ambient temperature | -15°C 40°C | Type of mounting | With through-hole |
Pneumatic connection 1 | M5 | Pneumatic connection 2 | M5 |
Pneumatic connection 3 | M5 | Manufacturer ID | 4450 |
Specifications may be subject to change without notice
