Product Model
mfh-5-1/2-npt
Selling Points

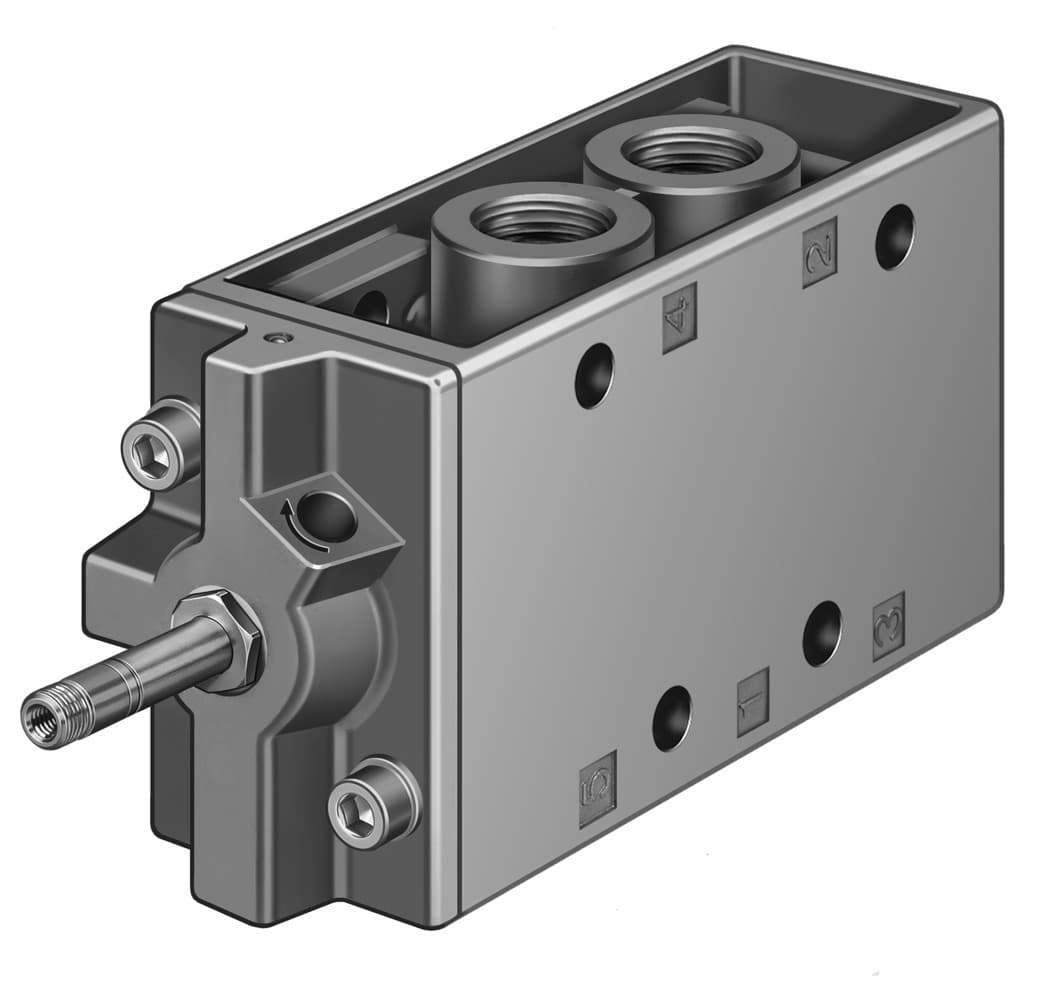

- 1The Festo MFH-5-1/2-NPT solenoid valve offers a 5/2-way monostable function, ensuring reliable and efficient pneumatic control in various industrial applications.
- 2This valve is electrically actuated, providing precise control over pneumatic flow rates and pressures, making it suitable for demanding operations.
- 3With a construction width of 52 mm and a standard nominal flow rate of 3700 l/min, the MFH-5-1/2-NPT is built to withstand the rigors of industrial environments.
- 4The valve can be mounted either on a manifold rail or with a through-hole, offering flexibility in installation and integration with existing systems.
- 5Designed with a mechanical spring return and underlap lap, this valve ensures consistent performance and long service life, with a B10 value of 5 million cycles under standard operating conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2, monostable | Actuation type | Electrical |
Width | 52mm | Standard nominal flow rate | 3700l/min |
Pneumatic working port | 1/2 NPT | Operating voltage | Via solenoid coil, to be ordered separately |
Operating pressure | 2bar 8bar | Structural design | Plate seat |
Reset method | Mechanical spring | Certification | c UL us - Recognized (OL) |
Degree of protection | IP65 | Nominal width | 14mm |
Width dimension | 69mm | Exhaust air function | With flow control option |
Sealing principle | Soft | Mounting position | Any |
Manual override | Detenting | Type of control | Pilot-controlled |
Flow direction | Non-reversible | Symbol | 00991035 |
Lap | Underlap | b-value | 0.32 |
Switching time off | 150ms | On switching time | 21ms |
Max. positive test pulse with 0 signal | 2200μs | Max. negative test pulse on 1 signal | 3700μs |
Coil characteristics | See solenoid coil, to be ordered separately | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Storage temperature | -20°C 60°C |
Temperature of medium | -10°C 60°C | Ambient temperature | -5°C 40°C |
Product weight | 1135g | Electrical connection | Via F coil, to be ordered separately |
Type of mounting | Optionally: On terminal strip With through-hole | Pilot exhaust air port 84 | M5 |
Pneumatic connection 1 | 1/2 NPT | Pneumatic connection 2 | 1/2 NPT |
Pneumatic connection 3 | 1/2 NPT | Pneumatic connection 4 | 1/2 NPT |
Pneumatic connection 5 | 1/2 NPT | Note on materials | RoHS-compliant |
Seals material | NBR TPE-U(PU) | Housing material | Die-cast aluminum |
Manufacturer ID | 9974 |
Specifications may be subject to change without notice
