Product Model

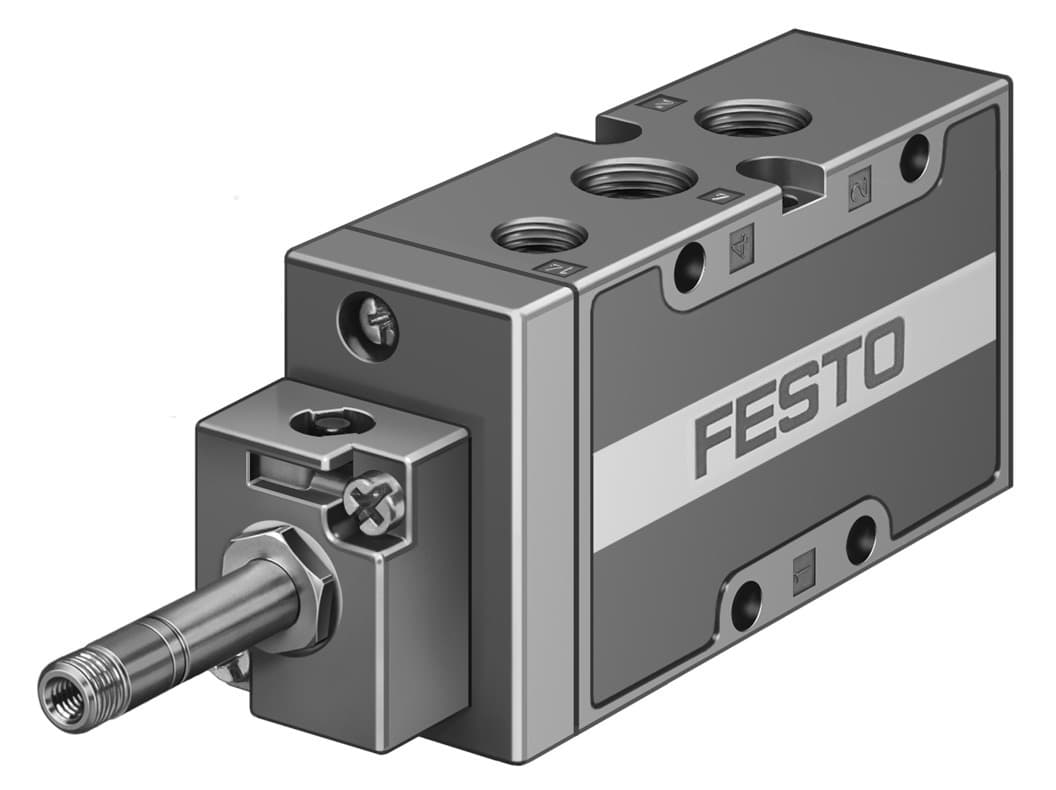

mfh-5-1/4-l-b
Selling Points
- 1The MFH-5-1/4-L-B solenoid valve features a standard nominal flow rate of 1600 l/min, making it suitable for demanding industrial applications.
- 2With a service life value of 80 million cycles and compliance with ISO 19973, this valve ensures long-lasting and reliable operation.
- 3The valve is designed with a compact width of 32 mm, allowing for easy integration into various pneumatic systems.
- 4The MFH-5-1/4-L-B supports both DC and AC voltages, providing flexibility in electrical connections and making it suitable for diverse applications.
- 5The valve meets EU ATEX Directive and ISO 13849-1 standards, ensuring safety in hazardous environments and compliance with regulatory requirements.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2, monostable | Actuation type | Electrical |
Width | 32mm | Standard nominal flow rate | 1600l/min |
Pneumatic working port | G1/4 | Operating pressure | 3bar 10bar |
Structural design | Piston gate valve | Reset method | Pneumatic spring |
Nominal width | 10mm | Width dimension | 33mm |
Exhaust air function | With flow control option | Sealing principle | Soft |
Mounting position | Any | Manual override | Non-detenting |
Type of control | Pilot-controlled | Pilot air supply port | Internal |
Flow direction | Non-reversible | Symbol | 00991023 |
Lap | Overlap | b-value | 0.38 |
C value | 6.35l/sbar | Max. switching frequency | 3Hz |
Switching time off | 42ms | On switching time | 23ms |
Max. positive test pulse with 0 signal | 2200μs | Max. negative test pulse on 1 signal | 3700μs |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Storage temperature | -40°C 60°C | Temperature of medium | -10°C 60°C |
Ambient temperature | -5°C 40°C | Product weight | 380g |
Electrical connection | Via F coil, to be ordered separately | Type of mounting | Optionally: On PR rail With through-hole |
Pilot exhaust air port 84 | M5 | Pneumatic connection 1 | G1/4 |
Pneumatic connection 2 | G? | Pneumatic connection 3 | G1/4 |
Pneumatic connection 4 | G1/4 | Pneumatic connection 5 | G1/4 |
Note on materials | RoHS-compliant | Seals material | NBR |
Housing material | Die-cast aluminum | Manufacturer ID | 31010 |
Specifications may be subject to change without notice
