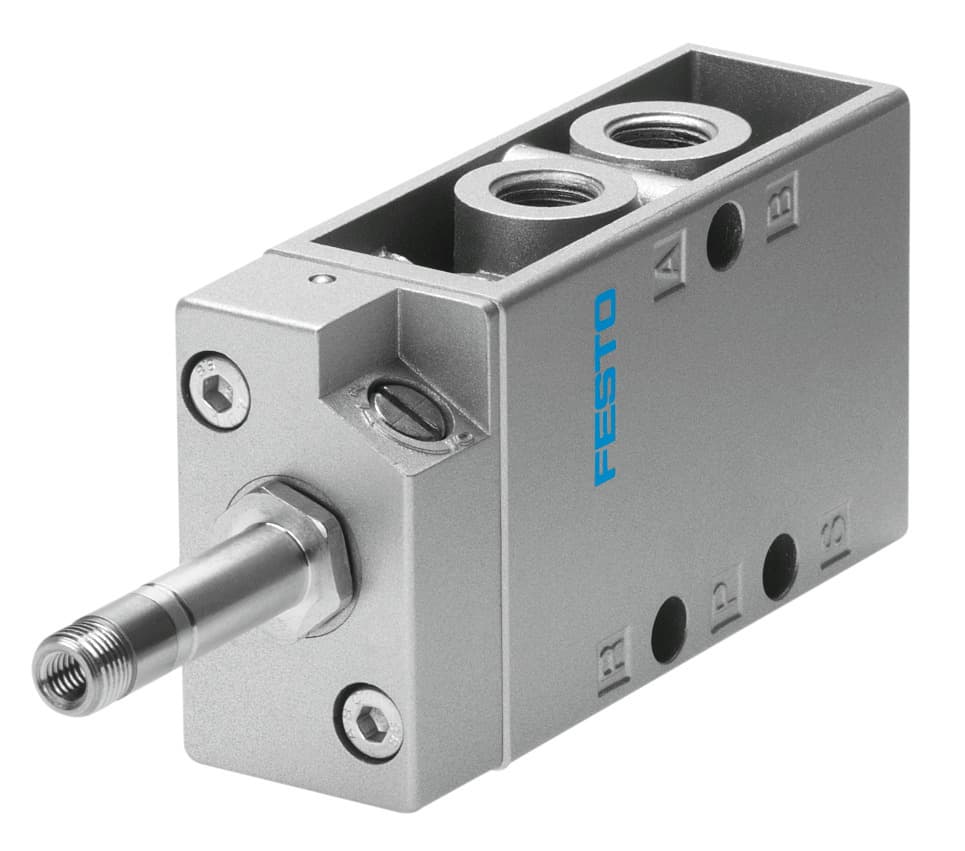

Product Model
mfh-5-1/8
Selling Points
- 1The Festo MFH-5-1/8 features a durable poppet seat design and is constructed from die-cast aluminum, ensuring long-lasting performance in demanding environments.
- 2With an IP65 protection rating, this valve is designed to withstand harsh conditions and maintain reliable operation in a wide range of temperatures from -5°C to 40°C.
- 3The MFH-5-1/8 can be mounted either on manifold rails or through holes, providing flexibility in installation and integration with various pneumatic systems.
- 4This valve offers a standard nominal flow rate of 500 liters per minute (L/min) and can handle operating pressures up to 8 bar, making it suitable for various pneumatic applications.
- 5The solenoid coil is easily interchangeable, and the valve features a soft sealing principle, making maintenance and replacement of parts straightforward.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2, monostable | Actuation type | Electrical |
Width | 26mm | Standard nominal flow rate | 500l/min |
Pneumatic working port | G1/8 | Operating voltage | Via solenoid coil, to be ordered separately |
Operating pressure | 1.8bar 8bar | Structural design | Plate seat |
Reset method | Mechanical spring | Certification | c UL us - Recognized (OL) |
Degree of protection | IP65 | Nominal width | 5mm |
Width dimension | 27mm | Exhaust air function | With flow control option |
Sealing principle | Soft | Mounting position | Any |
Manual override | Detenting | Type of control | Pilot-controlled |
Flow direction | Non-reversible | Symbol | 00991035 |
Underlap | no | Switching time off | 36ms |
On switching time | 8ms | Max. positive test pulse with 0 signal | 2200μs |
Max. negative test pulse on 1 signal | 3700μs | Coil characteristics | See solenoid coil, to be ordered separately |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Storage temperature | -20°C 60°C | Temperature of medium | -10°C 60°C |
Ambient temperature | -5°C 40°C | Product weight | 270g |
Electrical connection | Via F coil, to be ordered separately | Type of mounting | Optionally: On terminal strip With through-hole |
Pilot exhaust air port 82 | M5 | Pneumatic connection 1 | G1/8 |
Pneumatic connection 2 | G1/8 | Pneumatic connection 3 | G1/8 |
Pneumatic connection 4 | G1/8 | Pneumatic connection 5 | G1/8 |
Note on materials | RoHS-compliant | Seals material | NBR TPE-U(PU) |
Housing material | Die-cast aluminum | Manufacturer ID | 9982 |
Specifications may be subject to change without notice
