Product Model

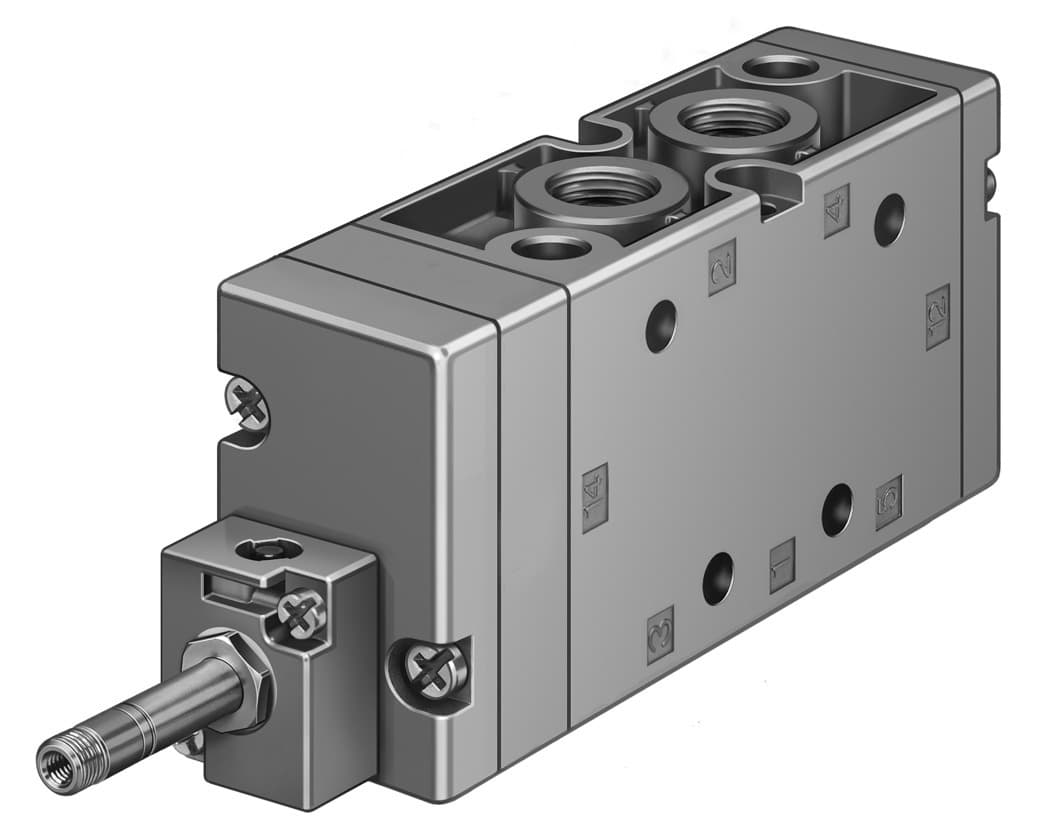

mfh-5-3/8-l-s-b
Selling Points
- 1High Flow Rate and Pressure: The MFH-5-3/8-L-S-B solenoid valve offers a flow rate of 2000 l/min and can handle working pressures up to 10 bar, making it ideal for demanding applications.
- 2Monostable Function: This valve features a 5/2 monostable function, providing stable and reliable operation in various industrial settings.
- 3Durable Construction: Built with die-cast aluminum housing and using nitrile/TPE-U(PU) seals, the MFH-5-3/8-L-S-B ensures long-lasting performance and resistance to corrosion.
- 4Wide Operating Temperature Range: The valve operates effectively within a temperature range of -10°C to +60°C, making it suitable for diverse industrial environments.
- 5ATEX Category Compliance: The MFH-5-3/8-L-S-B is compliant with ATEX category a, ensuring safe operation in hazardous environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2, monostable | Actuation type | Electrical |
Width | 40mm | Standard nominal flow rate | 2000l/min |
Pneumatic working port | G3/8 | Operating pressure | -0.9bar 10bar |
Structural design | Piston gate valve | Reset method | Pneumatic spring |
Nominal width | 12mm | Width dimension | 41mm |
Exhaust air function | With flow control option | Sealing principle | Soft |
Mounting position | Any | Manual override | Non-detenting |
Type of control | Pilot-controlled | Pilot air supply port | External |
Flow direction | Reversible | Symbol | 00991026 |
Lap | Overlap | Pilot pressure MPa | 0.2MPa 1MPa |
Pilot pressure | 2bar 10bar | Max. switching frequency | 3Hz |
Switching time off | 65ms | On switching time | 27ms |
Max. positive test pulse with 0 signal | 2200μs | Max. negative test pulse on 1 signal | 3700μs |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Storage temperature | -40°C 60°C | Temperature of medium | -10°C 60°C |
Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -5°C 40°C |
Product weight | 630g | Electrical connection | Via F coil, to be ordered separately |
Type of mounting | Optionally: On PR rail With through-hole | Pilot exhaust air port 84 | M5 |
Pilot air port 12 | G1/8 | Pilot air port 14 | G1/8 |
Pneumatic connection 1 | G3/8 | Pneumatic connection 2 | G3/8 |
Pneumatic connection 3 | G3/8 | Pneumatic connection 4 | G3/8 |
Pneumatic connection 5 | G3/8 | Note on materials | RoHS-compliant |
Seals material | NBR | Housing material | Die-cast aluminum |
Manufacturer ID | 33181 |
Specifications may be subject to change without notice
