Product Model
mfh-5/3b-3/8-s-b
Selling Points

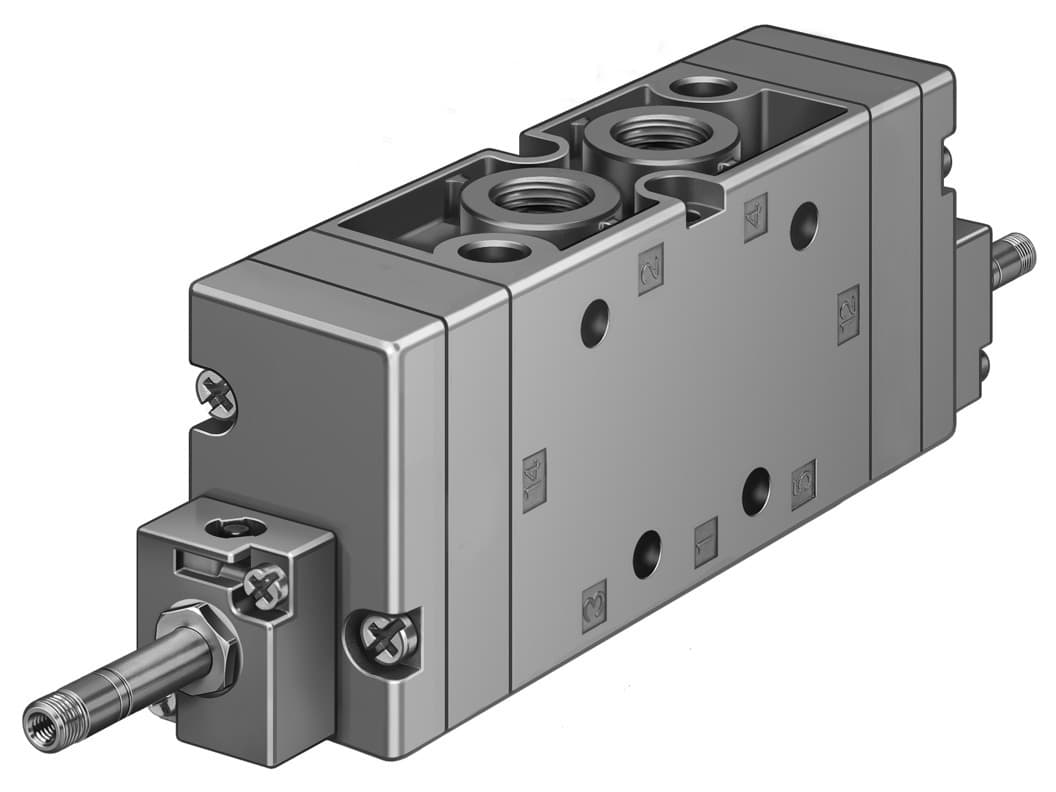

- 1The Festo MFH-5/3B-3/8-S-B is a 5/3-way mid-position pressurized electrically actuated single solenoid pneumatic piloted control valve with a non-detenting manual override, offering precise control in industrial automation systems.
- 2This valve features a compact design and is suitable for a wide range of applications, including those requiring high precision and reliability in pneumatic control systems.
- 3The MFH-5/3B-3/8-S-B is designed with a non-detenting manual override, allowing for easy operation and maintenance without the need for complex tools or procedures.
- 4Festo's commitment to quality ensures that the MFH-5/3B-3/8-S-B meets industry-leading standards, providing reliable performance and long service life in demanding industrial environments.
- 5This solenoid valve is part of Festo's comprehensive range of pneumatic components, offering everything from single products to complete solutions for factory and process automation applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/3, pressurized | Actuation type | Electrical |
Width | 40mm | Standard nominal flow rate | 2600l/min |
Pneumatic working port | G3/8 | Operating pressure | -0.9bar 10bar |
Structural design | Piston gate valve | Reset method | Mechanical spring |
Nominal width | 12mm | Width dimension | 41mm |
Exhaust air function | With flow control option | Sealing principle | Soft |
Mounting position | Any | Manual override | Non-detenting |
Type of control | Pilot-controlled | Pilot air supply port | External |
Flow direction | Reversible | Symbol | 00991031 |
Lap | Overlap | Pilot pressure MPa | 0.3MPa 1MPa |
Pilot pressure | 3bar 10bar | Max. switching frequency | 3Hz |
Switching time off | 118ms | On switching time | 25ms |
Changeover time | 78ms | Max. positive test pulse with 0 signal | 2200μs |
Max. negative test pulse on 1 signal | 3700μs | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | -40°C 60°C |
Temperature of medium | -10°C 60°C | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Ambient temperature | -5°C 40°C | Product weight | 780g |
Electrical connection | Via F coil, to be ordered separately | Type of mounting | Optionally: On PR rail With through-hole |
Pilot exhaust air port 82 | M5 | Pilot exhaust air port 84 | M5 |
Pilot air port 12 | G1/8 | Pilot air port 14 | G1/8 |
Pneumatic connection 1 | G3/8 | Pneumatic connection 2 | G3/8 |
Pneumatic connection 3 | G3/8 | Pneumatic connection 4 | G3/8 |
Pneumatic connection 5 | G3/8 | Note on materials | RoHS-compliant |
Seals material | NBR | Housing material | Die-cast aluminum |
Manufacturer ID | 31319 |
Specifications may be subject to change without notice
