Product Model

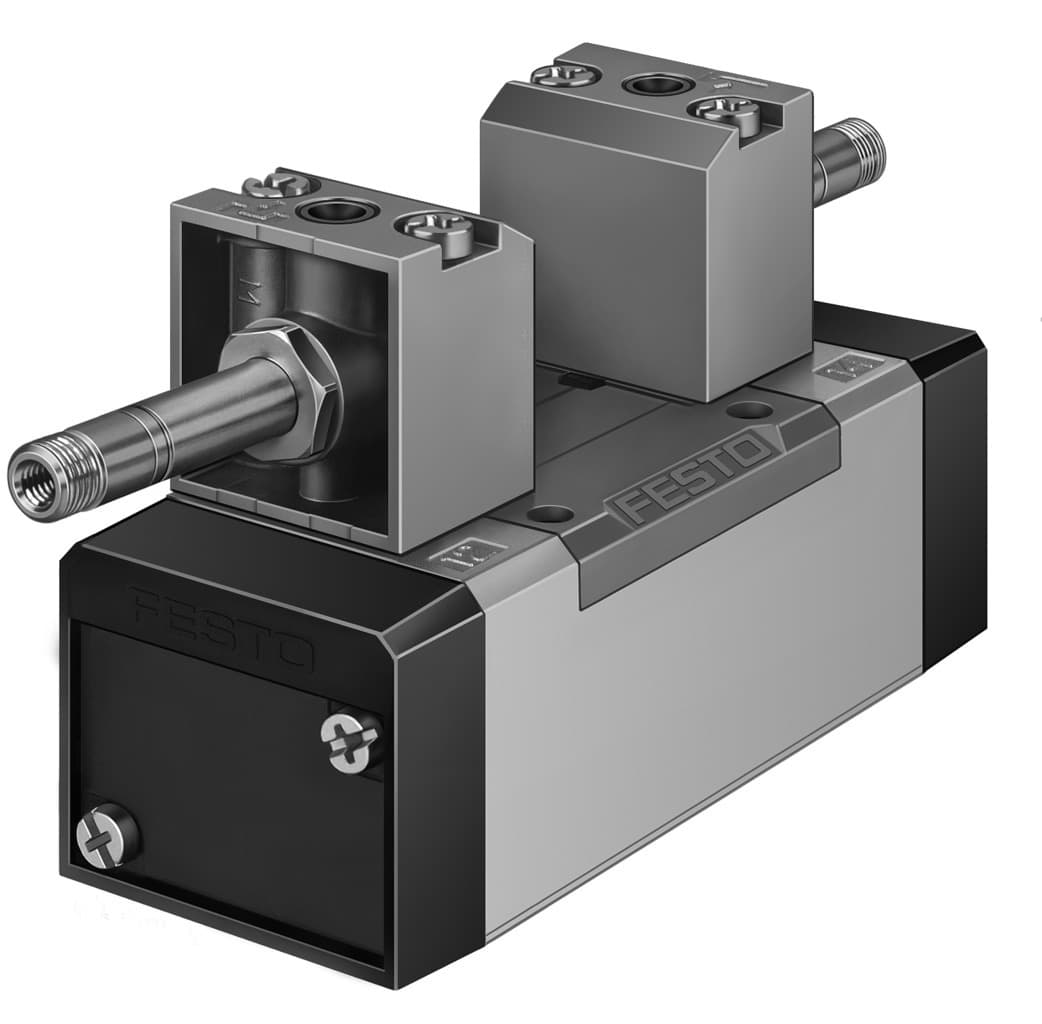

mfh-5/3b-d-1-c-ex
Selling Points
- 1High-Pressure Capability: The MFH-5/3B-D-1-C-EX solenoid valve operates at pressures ranging from 0.3 MPa to 1 MPa, making it suitable for demanding industrial applications.
- 2ATEX and UKEX Certified: This valve meets ATEX category gas II 2G and dust II 2D standards, ensuring safe operation in hazardous environments.
- 3Electric Actuation: The valve is electrically actuated, providing precise control over the flow of compressed air.
- 4Soft Mounting Option: The valve can be mounted in any position, offering flexibility in system design and installation.
- 5Robust Construction: Built with a piston gate valve design and a mechanical spring reset method, this valve ensures reliable operation and long service life.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/3, pressurized | Actuation type | Electrical |
Width | 42mm | Standard nominal flow rate | 1200l/min |
Pneumatic working port | Sub-base, size 1 according to ISO 5599-1 G1/4 | Operating voltage | Via solenoid coil, to be ordered separately |
Operating pressure | 3bar 10bar | Structural design | Piston gate valve |
Reset method | Mechanical spring | CE marking (see declaration of conformity) | as per EU explosion protection directive (ATEX) |
UKCA marking (see declaration of conformity) | acc. to UK EX instructions | ATEX category gas | II 2G |
ATEX category for dust | II 2D | Type of ignition protection for gas | Ex h IIC T4 Gb |
Type of (ignition) protection for dust | Ex h IIIC T105°C Db | Explosive ambient temperature | -5°C <= Ta <= +40°C |
Explosion protection certification outside the EU | EPL Db (GB) EPL Gb (GB) | Degree of protection | IP65 |
Nominal width | 8mm | Width dimension | 43mm |
Exhaust air function | With flow control option | Sealing principle | Soft |
Mounting position | Any | Conforms to standard | ISO 5599-1 |
Manual override | Detenting via accessory Non-detenting | ISO code | 158 |
Type of control | Pilot-controlled | Pilot air supply port | Internal |
Flow direction | Non-reversible | Symbol | 00991083 |
Lap | Overlap | Switching time off | 36ms |
On switching time | 18ms | Max. positive test pulse with 0 signal | 2200μs |
Max. negative test pulse on 1 signal | 3700μs | Explosion prevention and protection | Zone 1 (ATEX) Zone 1 (UKEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 21 (UKEX) Zone 22 (ATEX) |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Vibration resistance | Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6 | Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -5°C 40°C |
Noise level | 85dB(A) | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Ambient temperature | -5°C 40°C | Product weight | 520g |
Electrical connection | Via F coil, to be ordered separately | Type of mounting | On sub-base With through-hole |
Pilot air port 12 | Sub-base, size 1 as per ISO 5599-1 | Pilot air port 14 | Sub-base, size 1 as per ISO 5599-1 |
Pneumatic connection 1 | Sub-base, size 1 as per ISO 5599-1 | Pneumatic connection 2 | Sub-base, size 1 as per ISO 5599-1 |
Pneumatic connection 3 | Sub-base, size 1 as per ISO 5599-1 | Pneumatic connection 4 | Sub-base, size 1 as per ISO 5599-1 |
Pneumatic connection 5 | Sub-base, size 1 as per ISO 5599-1 | Note on materials | RoHS-compliant |
Seals material | HNBR NBR | Housing material | Die-cast aluminum |
Manufacturer ID | 535981 |
Specifications may be subject to change without notice
