Product Model
ms12-dl-g
Selling Points

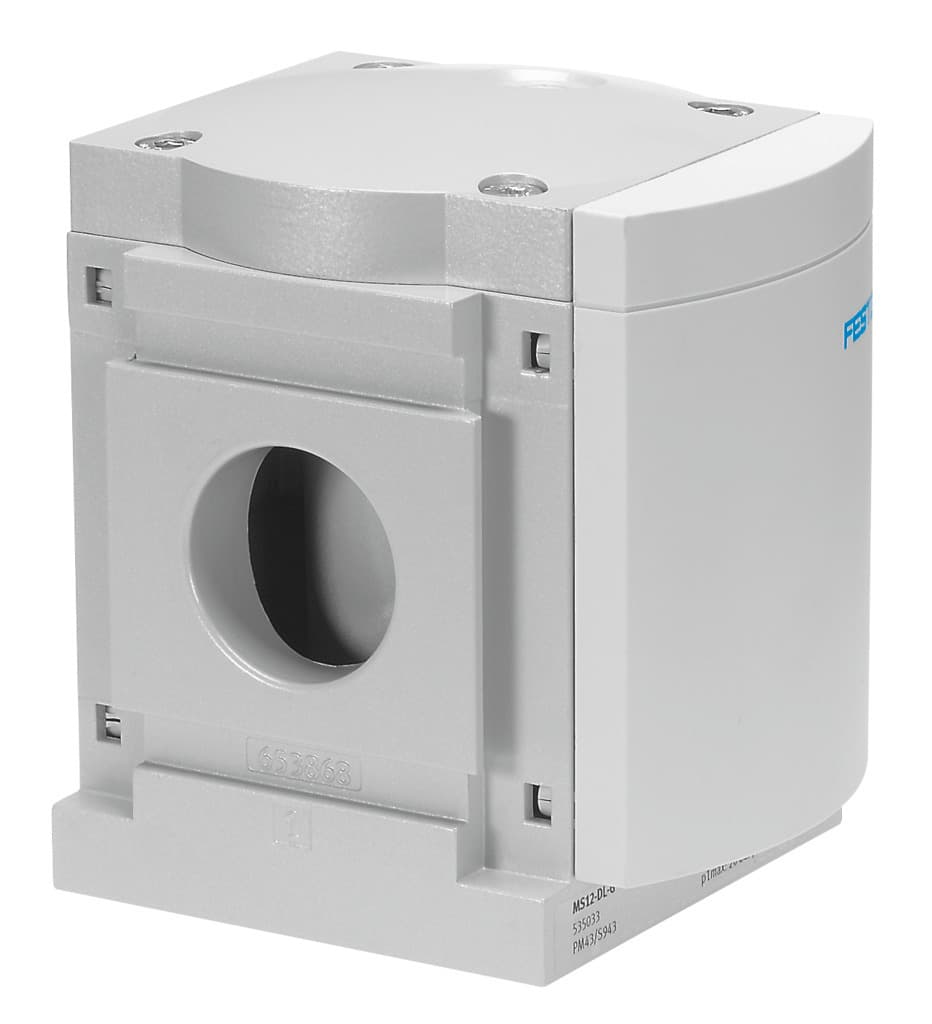

- 1The Festo MS12-DL-G soft start valve is pneumatically actuated, ensuring a smooth and controlled pressurization of pneumatic systems, reducing sudden and erratic movements.
- 2This valve operates within a pressure range of 2 to 20 bar, making it versatile for various industrial applications.
- 3The valve features an adjustable switching time delay, allowing for precise control over the pressurization process.
- 4With a corrosion resistance class of 2 (CRC), the MS12-DL-G is suitable for applications where moderate corrosion stress is present.
- 5The valve supports standard nominal flow rates of 25,000 to 42,000 liters per minute, ensuring efficient system operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Exhaust air function | With flow control option | Actuation type | Pneumatic |
Mounting position | Any | Manual override | None |
Structural design | Piston seat | Reset method | Mechanical spring |
Type of control | Direct | Pilot air supply port | Internal |
Flow direction | Non-reversible | Symbol | 00991513 |
Valve function | 2/2 | Operating pressure | 2bar 20bar |
Standard nominal flow rate | 25000l/min 42000l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | -10°C 60°C | Ambient temperature | -10°C 60°C |
Product weight | 3600g | Type of mounting | Optionally: Line installation With accessories |
Pneumatic connection 1 | Battery module | Pneumatic connection 2 | Battery module |
Seals material | NBR | Housing material | Die-cast aluminum |
Manufacturer ID | 541497 |
Specifications may be subject to change without notice
