Product Model
ms12-ee-g-v24
Selling Points

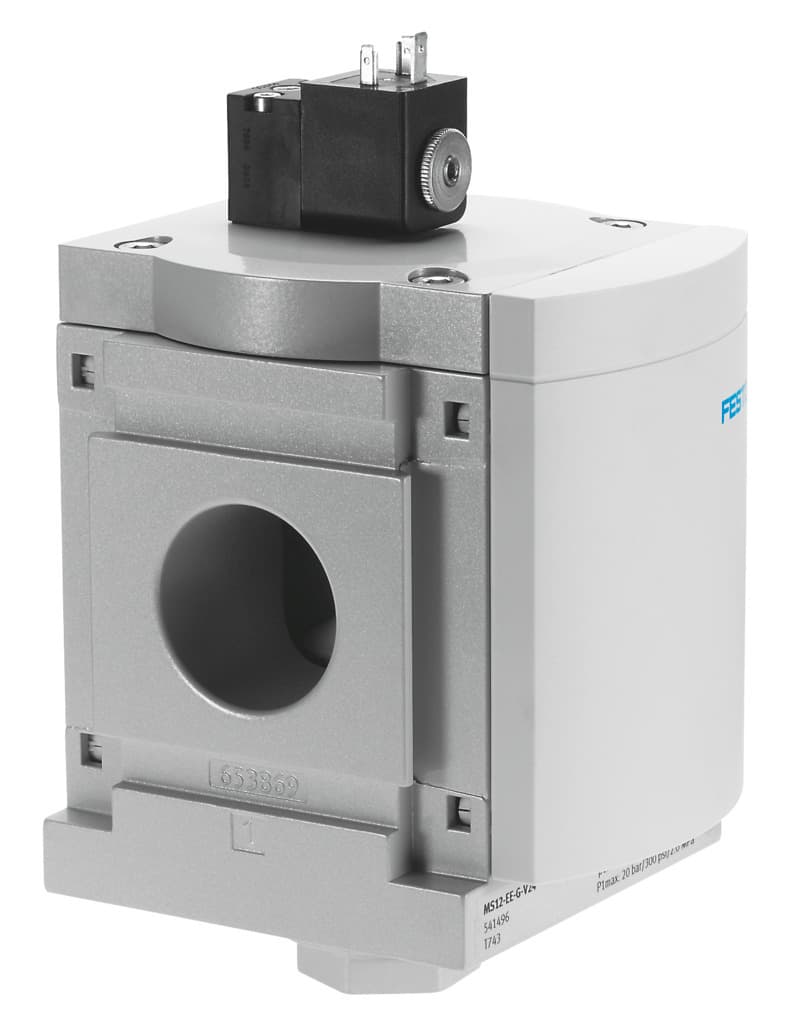

- 1The Festo MS12-EE-G-V24 is an electrically actuated on/off valve designed for pressurizing and exhausting pneumatic equipment. It features a piston gate valve structure for efficient operation.
- 2This valve is piloted and has a 3/2-way closed, monostable function, ensuring precise control over compressed air flow. It operates within a pressure range of 3 to 16 bar.
- 3The MS12-EE-G-V24 is built with a mechanical spring reset, providing reliable operation even under varying conditions. It also features detenting and non-detenting manual override options.
- 4With a standard nominal flow rate of 25,000 to 32,000 liters per minute, this valve is suitable for high-performance applications. It operates at 24 V DC with a power consumption of 4.5 W.
- 5The valve is designed to withstand ambient temperatures from -10°C to 50°C and has an IP65 protection category, ensuring durability in various environments. It is also corrosion-resistant with a class KBK 2 rating.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Structural design | Piston gate valve | Actuation type | Electrical |
Exhaust air function | Without flow control option | Manual override | Detenting Non-detenting |
Reset method | Mechanical spring | Type of control | Pilot-controlled |
Symbol | 00991308 | Valve function | 3/2, closed, monostable |
Operating pressure | 3bar 16bar | Lap | Overlap |
Standard nominal flow rate | 25000l/min 32000l/min | Duty cycle | 100% |
Coil characteristics | 24 V DC: 4.5 W | Permissible voltage fluctuations | +/- 10 % |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | -10°C 50°C | Degree of protection | IP65 |
Ambient temperature | -10°C 50°C | Type of mounting | Optionally: Line installation With accessories |
Mounting position | Any | Flow direction | Non-reversible |
Product weight | 3800g | Pneumatic connection 1 | Battery module |
Pneumatic connection 2 | Battery module | Pneumatic connection 3 | G1 |
Pilot air supply port | Internal | Electrical connection | as per DIN EN 175301-803 Rectangular design |
Seals material | NBR | Housing material | Die-cast aluminum |
Manufacturer ID | 541496 |
Specifications may be subject to change without notice
