Product Model

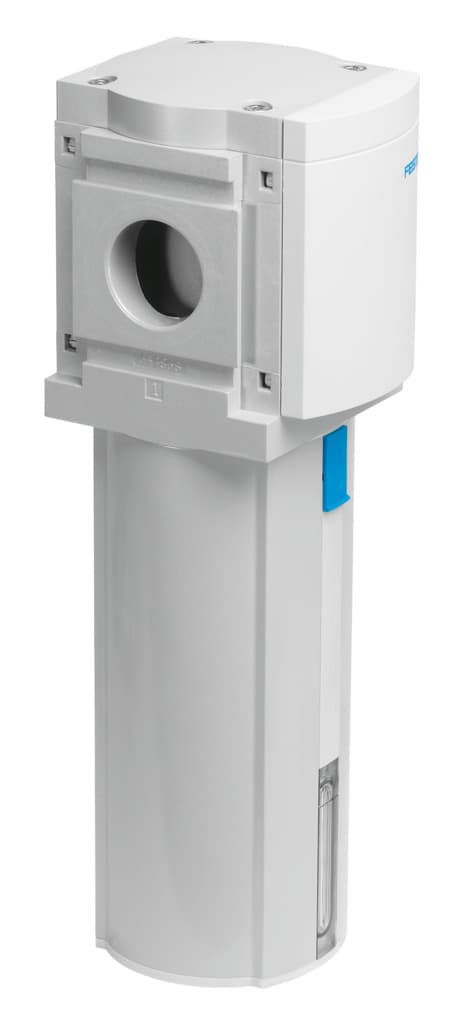

ms12-lf
Selling Points
- 1The Festo MS12-LF features a filtration grade of 40µm, ensuring high-quality air purification and removing contaminants effectively.
- 2Equipped with a fully automatic condensate drain, this filter minimizes downtime and maintenance, ensuring continuous operation.
- 3Available for in-line installation or via mounting bracket, the MS12-LF offers flexibility in mounting positions, making it suitable for various applications.
- 4Built with a sintered filter and centrifugal separator, the MS12-LF is designed for durability and long service life, with a service-life value of 1000 hours.
- 5Meets ISO 8573-1:2010 standards for compressed air and inert gases, ensuring compliance with industry regulations and maintaining air purity at the output.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 12 | Series | MS |
Mounting position | Vertical +/- 5° | Structural design | Sinter filter with centrifugal separator |
Degree of condensate separation | 75% | Operating pressure | 0.8bar 20bar |
Operating medium | Compressed air as per ISO 8573-1:2010 [-:9:-] Compressed air as per ISO 8573-1:2010 [7:9:-] Inert gas | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Storage temperature | -10°C 60°C | Temperature of medium | -10°C 60°C |
Ambient temperature | -10°C 60°C | Type of mounting | Optionally: Line installation With accessories |
Pneumatic connection 1 | Internal | Pneumatic connection 2 | Internal |
Housing material | Die-cast aluminum | Material of bowl | Wrought aluminum alloy |
Manufacturer ID | 535023 |
Specifications may be subject to change without notice
