Product Model

ms12-lfm-a

In Stock
Last updated: 2025/4/24

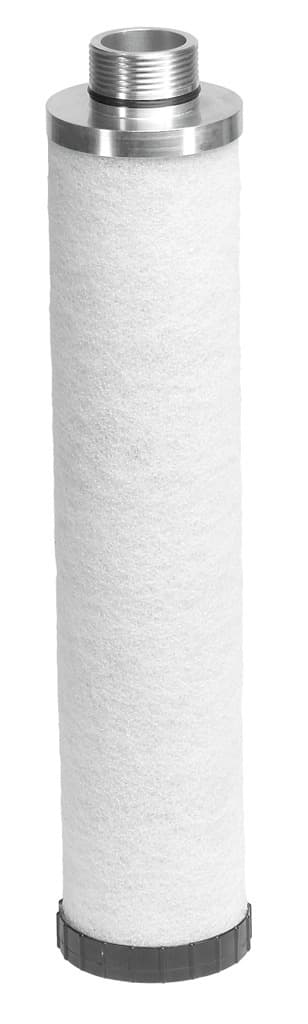

Festo ms12-lfm-a

Selling Points

  • 1The Festo MS12-LFM-A micro filter offers a filtration grade of 0.01 μm, ensuring extremely clean compressed air with a filter efficiency of 99.99%.
  • 2Available with manual, automatic, or electrically actuated drain options, this filter caters to various operational needs and ensures efficient condensate management.
  • 3The MS12-LFM-A operates with a flow rate of 500 to 50,000 l/min, making it suitable for a wide range of applications in compressed air preparation.
  • 4Made from high-quality materials including borosilicate mesh and NBR seals, this filter is built to withstand moderate corrosion stress and is RoHS-compliant.
  • 5The filter meets the air purity class at the output as per DIN ISO 8573-1:2010, ensuring compliance with international standards for compressed air quality.
Product Details
ms12-lfm-a
Festo

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Size
12
Series
MS
Grade of filtration
0.01μm
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Product weight
425g
Note on materials
RoHS-compliant
Seals material
NBR
Compressed air filter material
Borosilicate fiber
Manufacturer ID
537146

Specifications may be subject to change without notice
