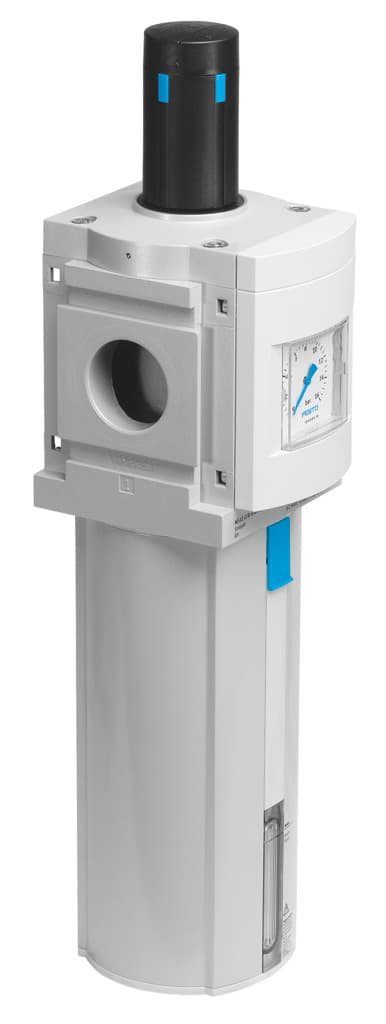

Product Model
ms12-lfr
Selling Points
- 1The Festo MS12-LFR series offers a high flow rate of 11,000 to 17,000 liters per minute, making it suitable for demanding industrial applications.
- 2This filter regulator is designed with minimal pressure hysteresis and primary pressure compensation, ensuring precise control and stability.
- 3The MS12-LFR series effectively separates particles and condensates, improving air quality and extending equipment lifespan.
- 4Available with pressure ranges from 0.3 to 16 bar, the MS12-LFR series caters to a variety of industrial needs and environments.
- 5Users can choose from manual, fully automatic, or electrically actuated automatic condensate drains, as well as 5μm or 40μm filter inserts.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 12 | Series | MS |
Actuator lock | Rotary knob with detent Rotary knob with integrated lock can be closed with accessories | Mounting position | Vertical +/- 5° |
Structural design | Filter regulator with pressure gauge | Degree of condensate separation | 75% |
Pressure gauge | with pressure gauge | Max. pressure hysteresis | 0.4bar |
Operating medium | Compressed air as per ISO 8573-1:2010 [-:4:-] Compressed air as per ISO 8573-1:2010 [7:4:-] Inert gas | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | -10°C 60°C |
Air quality class at the output | Compressed air as per ISO 8573-1:2010 [6:4:4] Compressed air as per ISO 8573-1:2010 [7:4:4] | Temperature of medium | -10°C 60°C |
Ambient temperature | -10°C 60°C | Type of mounting | Optionally: Line installation With accessories |
Housing material | Die-cast aluminum | Material of bowl | Wrought aluminum alloy |
Manufacturer ID | 535022 |
Specifications may be subject to change without notice
