Product Model
ms12-lfr-g-d7-euv-ld-as
Selling Points

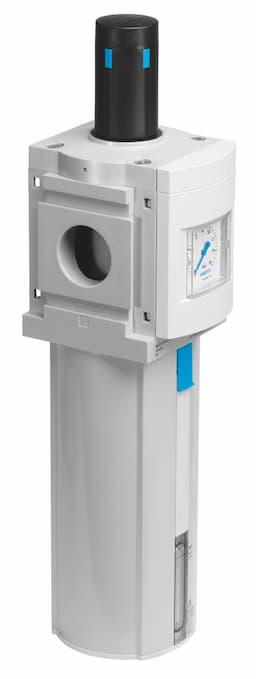

- 1The Festo MS12-LFR-G-D7-EUV-LD-AS filter regulator features a 40 µm filter, ensuring high air purity and reliability in compressed air systems.
- 2Equipped with a fully automatic condensate drain, this filter regulator minimizes downtime and maintenance, ensuring continuous operation.
- 3The MS12-LFR-G-D7-EUV-LD-AS includes a pressure gauge for precise monitoring of operating pressure, ensuring optimal system performance.
- 4With a maximum output pressure of 12 bar and a pressure regulation range of 0.5 to 12 bar, this filter regulator is versatile and adaptable to various applications.
- 5Designed for vertical installation with a ±5° angle tolerance, the MS12-LFR-G-D7-EUV-LD-AS offers flexibility in system integration, making it suitable for a wide range of pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 12 | Series | MS |
Actuator lock | Rotary knob with detent can be closed with accessories | Mounting position | Vertical +/- 5° |
Grade of filtration | 40μm | Condensate drain | Fully automatic Manual, non-detenting |
Structural design | Filter regulator with pressure gauge Sinter filter with centrifugal separator with condensate drain with secondary exhausting Modular Pilot-controlled diaphragm regulator | Max. condensate volume | 400ml |
Controller function | Outlet pressure constant With primary pressure compensation With secondary exhausting With return flow function | Bowl guard | Integrated as metal bowl guard |
Degree of condensate separation | 75% | Symbol | 00991587 |
Pressure gauge | with pressure gauge | Operating pressure | 2bar 12bar |
Pressure regulation range | 0.5bar 12bar | Max. pressure hysteresis | 0.4bar |
Flow rate of secondary venting | 500l/min | Standard nominal flow rate | 12000l/min 17000l/min |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:-] Inert gas | Information on operating and pilot media | Ester oil < 0.1mg/m3, according to ISO 8573-1:2010 [-:-:2] |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Storage temperature | -10°C 60°C | Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Temperature of medium | 5°C 60°C | Ambient temperature | 5°C 60°C |
Pore size | 40μm | Product weight | 7000g |
Type of mounting | Optionally: Line installation With mounting bracket | Pneumatic connection 1 | Internal |
Pneumatic connection 2 | Internal | Covering material | PA |
Material of spin disc | POM | Material of filter support | POM |
Material of sight glass metal bowl | PC | Material of operator panel | PA-reinforced POM |
Seals material | NBR | Material of spring | Spring steel |
Compressed air filter material | Sintered bronze | Housing material | Die-cast aluminum |
Diaphragm material | NBR | Material of bowl | Wrought aluminum alloy |
Separating disc material | POM | Valve tappet material | Wrought aluminum alloy NBR High-alloy stainless steel |
Material of stabilizing disc | POM | Manufacturer ID | 537149 |
Specifications may be subject to change without notice
