Product Model
ms12-lfx
Selling Points

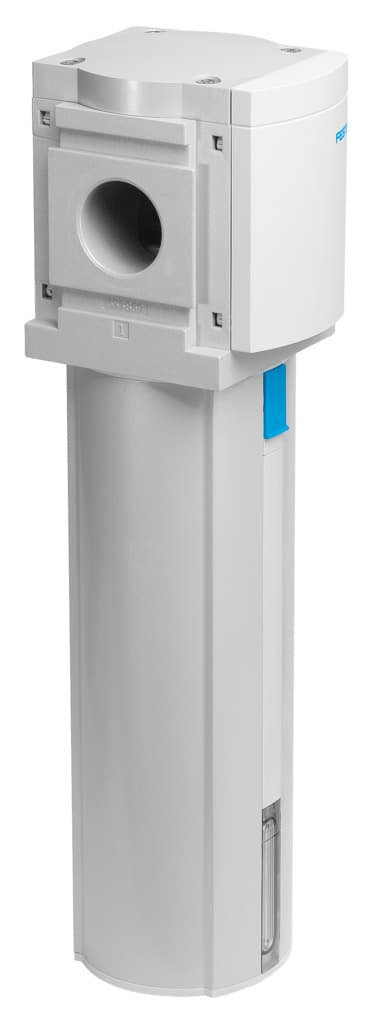

- 1The Festo MS12-LFX activated carbon filter effectively removes both liquid and gaseous oil from compressed air, ensuring a clean and reliable supply.
- 2This filter maintains an air purity class at the output of 1.7.1 to DIN ISO 8573-1, making it suitable for various industrial applications.
- 3Available in different pneumatic connections (1 NPT, 1¼ NPT, 1½ NPT, and 2 NPT), the MS12-LFX can be easily integrated into various systems.
- 4With a corrosion resistance class of 2 according to Festo standard 940 070, the filter is designed to withstand moderate corrosion stress in industrial environments.
- 5The MS12-LFX offers configurable options including different port plates and mounting brackets, allowing for customized installation and operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 12 | Series | MS |
Mounting position | Vertical +/- 5° | Structural design | Active carbon filter |
Operating pressure | 0bar 20bar | Operating medium | Compressed air as per ISO 8573-1:2010 [1:4:2] Inert gas |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Storage temperature | -10°C 60°C | Air quality class at the output | Compressed air as per ISO 8573-1:2010 [1:4:1] |
Temperature of medium | 5°C 30°C | Residual oil content | 0.003mg/m3 |
Ambient temperature | -10°C 60°C | Type of mounting | Optionally: Line installation With accessories |
Note on materials | RoHS-compliant | Compressed air filter material | Activated carbon |
Housing material | Die-cast aluminum | Material of bowl | Wrought aluminum alloy |
Manufacturer ID | 535043 |
Specifications may be subject to change without notice
