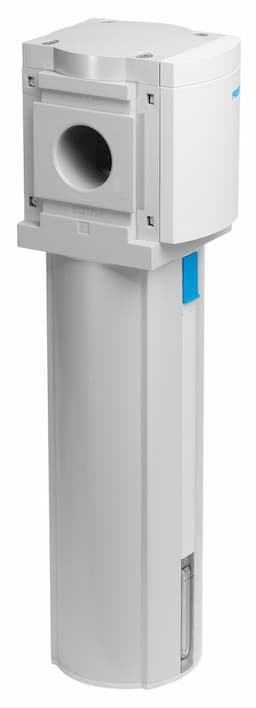

Festo MS12-LFX-G-U Activated Carbon Filter - High-Quality Air Purification

Selling Points

1The Festo MS12-LFX-G-U is an activated carbon filter designed to remove liquid and gaseous oil particles from compressed air, ensuring high air purity and cleanliness.
2With a flow rate of 5,065 to 15,190l/min and an operating pressure range of 0 to 20 bar, this filter is versatile and suitable for various pneumatic applications.
3The filter features a fiber filter design with an integrated metal bowl guard, providing structural integrity and easy maintenance.
4The MS12-LFX-G-U operates within a moderate corrosion stress resistance class (CRC 2) and is compliant with ISO 8573-1:2010 standards for compressed air quality.
5This filter is made from high-quality materials, including die-cast aluminum housing, wrought aluminum alloy bowl, and NBR seals, ensuring durability and reliability in harsh environments.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	12	Series	MS
Mounting position	Vertical +/- 5°	Condensate drain	Manually rotating
Structural design	Fiber filter	Bowl guard	Integrated as metal bowl guard
Symbol	00991519	Operating pressure	0bar 20bar
Operating medium	Compressed air as per ISO 8573-1:2010 [1:4:2] Inert gas	Corrosion resistance class (CRC)	2 - Moderate corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Storage temperature	-10°C 60°C
Air quality class at the output	Compressed air as per ISO 8573-1:2010 [1:4:1]	Temperature of medium	5°C 30°C
Residual oil content	0.003mg/m3	Ambient temperature	-10°C 60°C
Product weight	7000g	Type of mounting	Optionally: Line installation With mounting bracket
Covering material	PA	Note on materials	RoHS-compliant
Seals material	NBR	Compressed air filter material	Activated carbon Fiber
Housing material	Die-cast aluminum	Material of bowl	Wrought aluminum alloy
Inspection window material	PC	Manufacturer ID	537155

Specifications may be subject to change without notice
