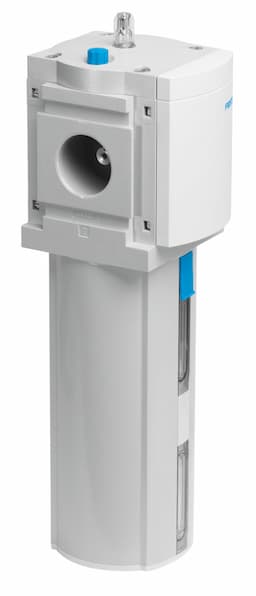

Festo MS12-LOE-G-U Lubricator: High-Performance Air Line Lubrication

Selling Points

1The Festo MS12-LOE-G-U lubricator ensures reliable and efficient lubrication of air lines, maintaining optimal performance and extending equipment lifespan.
2Designed for vertical installations with a ±5° flexibility, this lubricator can be easily integrated into various pneumatic systems.
3With a maximum oil capacity of 1,500 cm³, this lubricator provides prolonged lubrication intervals, reducing the need for frequent refills.
4Built with an integrated metal bowl and made from durable materials like aluminum die cast and wrought aluminum alloy, this lubricator offers robust construction and corrosion resistance.
5Operating within a temperature range of -10 to 60 °C and with an oil viscosity of ISO VG 32, this lubricator is suitable for a wide range of applications and environments.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	12	Series	MS
Mounting position	Vertical +/- 5°	Structural design	Proportional standard oil mist lubricator
Max. oil capacity	1500cm3	Bowl guard	Integrated as metal bowl guard
Symbol	00991532	Operating pressure	1bar 16bar
Minimum flow rate for lubricator function	400l/min	Standard nominal flow rate	20000l/min 22000l/min
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Corrosion resistance class (CRC)	2 - Moderate corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Storage temperature	-10°C 60°C
Temperature of medium	0°C 60°C	Oil viscosity	ISO VG 32
Ambient temperature	0°C 60°C	Product weight	6500g
Type of mounting	Optionally: Line installation With mounting bracket	Pneumatic connection 1	Internal
Pneumatic connection 2	Internal	Covering material	PA
Seals material	NBR	Housing material	Die-cast aluminum
Material of bowl	Wrought aluminum alloy	Manufacturer ID	537156

Specifications may be subject to change without notice
