Product Model

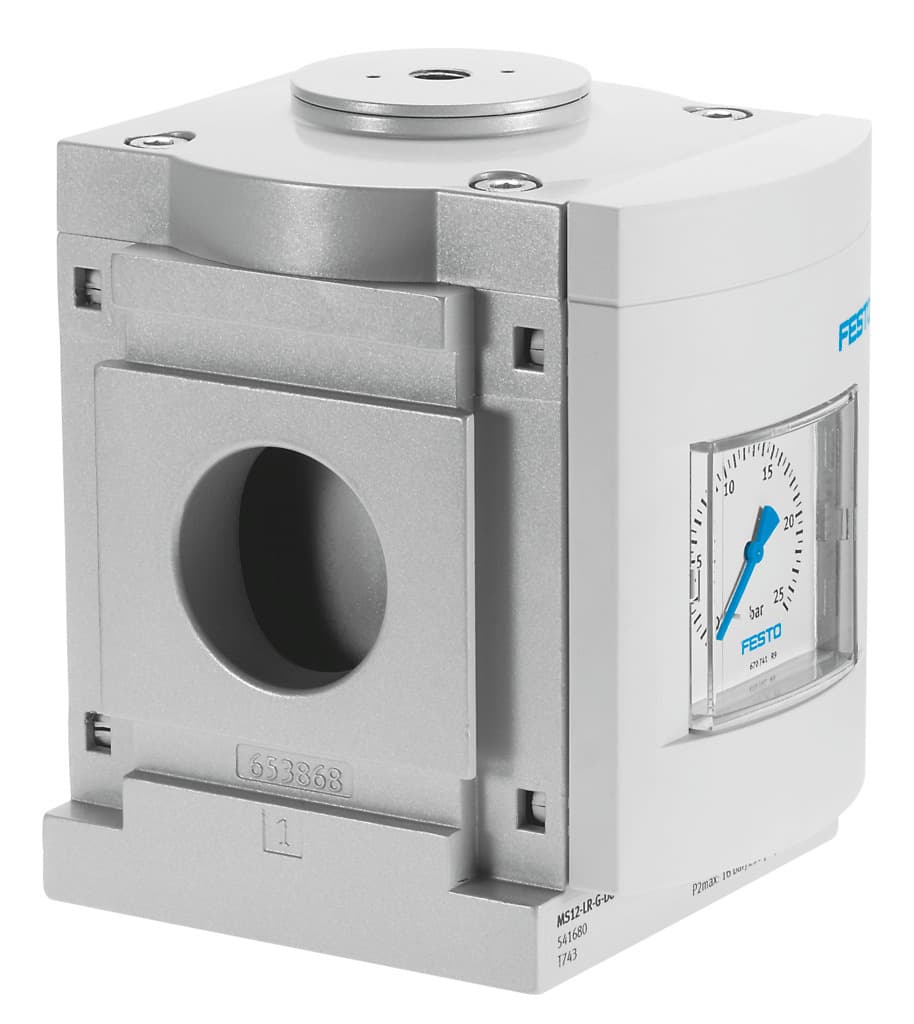

ms12-lr-g-po
Selling Points
- 1The MS12-LR-G-PO pressure regulator offers a standard nominal flow rate of 13,000 to 22,000 liters per minute, making it ideal for high-flow applications in pneumatic control circuits.
- 2This pressure regulator maintains a constant working pressure between 0.5 and 16 bar, ensuring precise control over your pneumatic system's pressure.
- 3With a corrosion resistance class of 2, the MS12-LR-G-PO is designed to withstand moderate corrosion stress, ensuring durability in various industrial environments.
- 4The regulator can be assembled in any position, providing flexibility in system design and installation. It also supports line installation with optional mounting brackets.
- 5Made from die-cast aluminum housing and NBR seals, the MS12-LR-G-PO offers robust construction and reliable performance in demanding applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 12 | Series | MS |
Mounting position | Any | Structural design | Diaphragm regulator |
Controller function | Outlet pressure constant With primary pressure compensation With secondary exhausting With return flow function | Symbol | 00991900 |
Pressure gauge | with pressure gauge | Operating pressure | 0.8bar 21bar |
Pressure regulation range | 0.5bar 16bar | Max. pressure hysteresis | 5.8psi |
Flow rate of secondary venting | 600l/min | Standard nominal flow rate | 13000l/min 22000l/min |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | -10°C 60°C |
Temperature of medium | -10°C 60°C | Ambient temperature | -10°C 60°C |
Product weight | 4000g | Type of mounting | Optionally: Line installation With mounting bracket |
Pilot air port 12 | G1/4 | Pneumatic connection 1 | Sub-base |
Pneumatic connection 2 | Sub-base | Covering material | PA |
Note on materials | RoHS-compliant | Lower cover material | Wrought aluminum alloy |
Seals material | NBR | Material of spring | Spring steel |
Housing material | Die-cast aluminum | Diaphragm material | NBR |
Valve tappet material | Wrought aluminum alloy NBR High-alloy stainless steel | Manufacturer ID | 541680 |
Specifications may be subject to change without notice
