Product Model
ms12n-ee
Selling Points

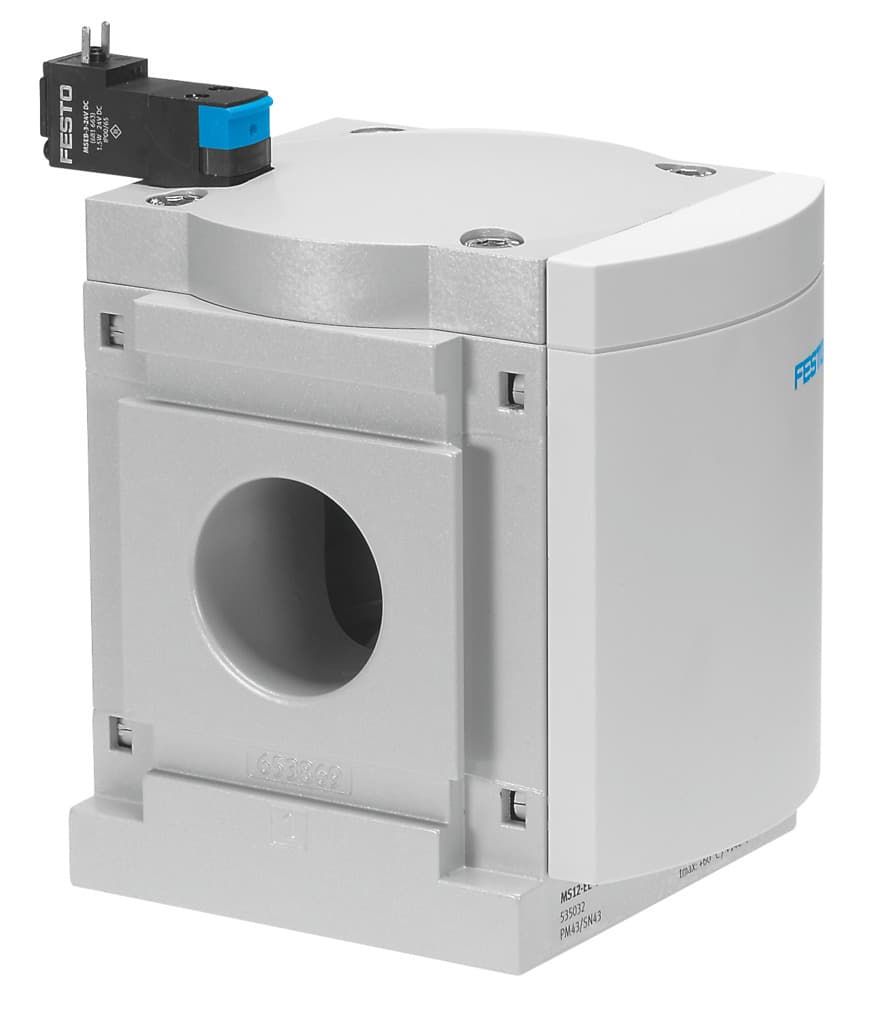

- 1The Festo MS12N-EE on-off valve is manually operated and features a solenoid actuated design, ensuring reliable control over pneumatic installations.
- 2Equipped with a pneumatic connection of 1 NPT, 1¼ NPT, 1½ NPT, and 2 NPT, the MS12N-EE offers versatile compatibility with various system configurations.
- 3The valve operates within a pressure range of 44 to 235 psi, making it suitable for a wide range of industrial applications.
- 4With a flow rate of 882.5 to 1,482.6 scfm, the MS12N-EE ensures efficient pressurization and venting of pneumatic systems.
- 5Constructed from durable materials including die-cast aluminum for the body and stainless steel for the valve spool, the MS12N-EE offers high corrosion resistance and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Structural design | Piston gate valve | Actuation type | Electrical |
Exhaust air function | Without flow control option | Manual override | Detenting Non-detenting |
Reset method | Mechanical spring | Type of control | Pilot-controlled |
Valve function | 3/2, closed, monostable | Operating pressure | 3bar 16bar |
Lap | Overlap | Standard nominal flow rate | 25000l/min 32000l/min |
Duty cycle | 100% | Coil characteristics | 110 V AC: 50 Hz, initial power 11.5 VA, holding power 8.9 VA 110 V AC: 60 Hz, initial power 9.5 VA, holding power 6.2 VA 230 V AC: 50 Hz, initial power 11.5 VA, holding power 9.1 VA 230 V AC: 60 Hz, initial power 9.5 VA, holding power 6.4 VA 24 V DC: 4.5 W |
Permissible voltage fluctuations | +/- 10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -10°C 50°C |
Degree of protection | IP65 | Ambient temperature | -10°C 50°C |
CE marking (see declaration of conformity) | As per EU low voltage directive | UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment |
Type of mounting | Optionally: Line installation With accessories | Mounting position | Any |
Flow direction | Non-reversible | Product weight | 3800g |
Pneumatic connection 3 | G1 | Pilot air supply port | Internal |
Seals material | NBR | Housing material | Die-cast aluminum |
Manufacturer ID | 535037 |
Specifications may be subject to change without notice
