Product Model
ms12n-frm-g
Selling Points

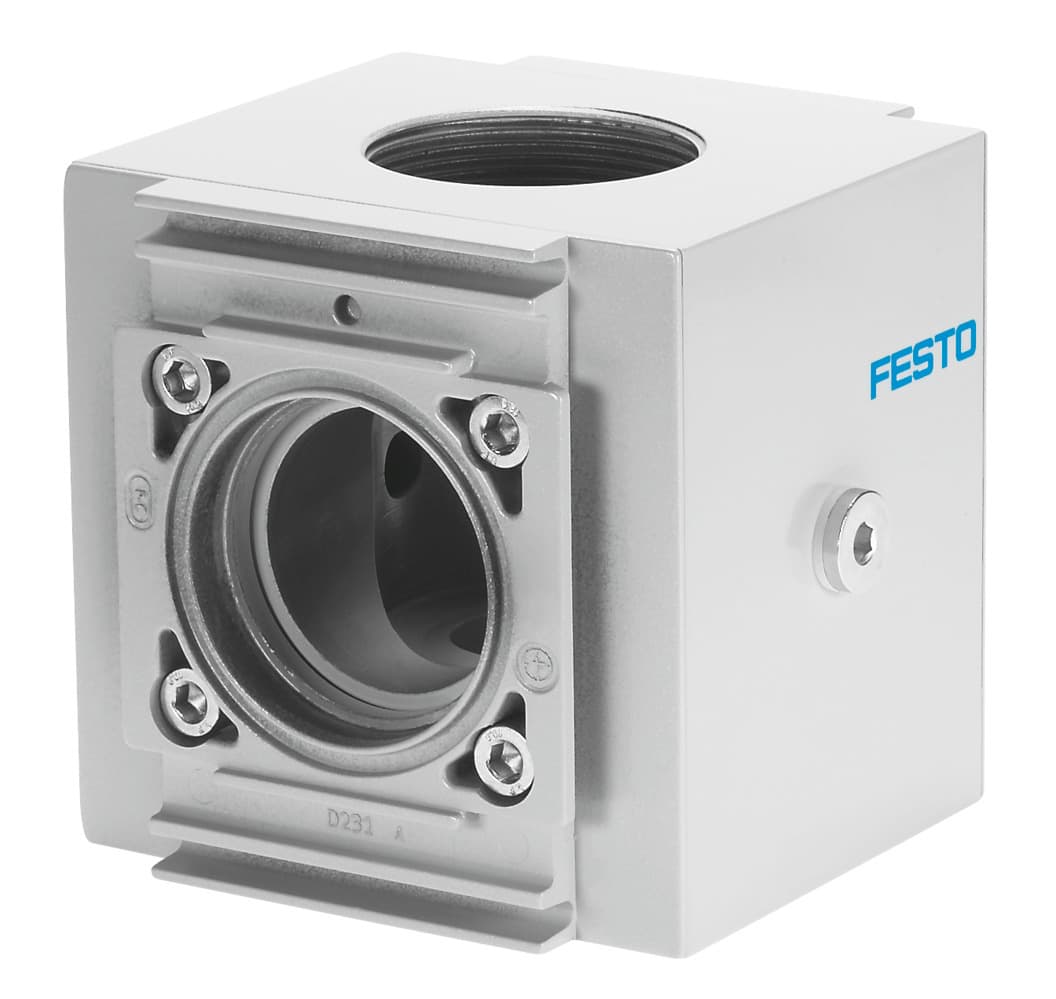

- 1The Festo MS12N-FRM-G branching module is designed to provide additional air outlets, creating separate pressure or air quality branches. It can also be used to attach pressure sensors, enhancing the flexibility of your pneumatic system.
- 2This module features a die-cast aluminum housing, ensuring durability and resistance to corrosion. It operates within a temperature range of -10°C to 60°C, making it suitable for various industrial environments.
- 3The MS12N-FRM-G boasts a flow rate of 882.5 to 1,482.6 SCFM and an operating pressure range of 0 to 309 PSI. Its modular design allows for easy integration into existing pneumatic systems.
- 4The module includes pneumatic connections (1 NPT, 1¼ NPT, 1½ NPT, and 2 NPT) and is compatible with various port plates, offering flexibility in system configuration.
- 5The Festo MS12N-FRM-G is compliant with VDMA24364-B2-L LABS (PWIS) conformity and ISO 8573-1:2010 operating medium standards, ensuring high-quality performance and reliability in compressed air applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Mounting position | Any | Structural design | Branching module |
Symbol | 00991510 | Operating pressure | 0bar 20bar |
Standard nominal flow rate in main flow direction 1 -> 2 | 25000l/min 42000l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [-:-:-] |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Storage temperature | -10°C 60°C | Temperature of medium | -10°C 60°C |
Ambient temperature | -10°C 60°C | Product weight | 3000g |
Pneumatic connection 1 | Battery module | Pneumatic connection 2 | Battery module |
Pneumatic connection 3 | 2 NPT | Pneumatic connection 4 | 1 NPT |
Housing material | Die-cast aluminum | Manufacturer ID | 541682 |
Specifications may be subject to change without notice
