Product Model
ms12n-loe
Selling Points

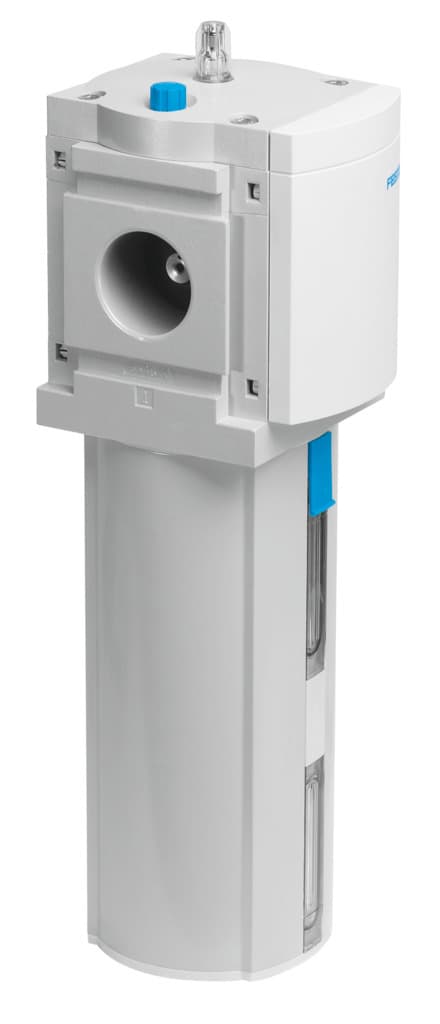

- 1The Festo MS12N-LOE lubricator adds a precise, adjustable quantity of oil to the compressed air stream, reducing wear on drive units and enhancing system longevity.
- 2With a high flow rate, this lubricator ensures efficient operation even under demanding conditions, making it ideal for various industrial applications.
- 3The MS12N-LOE features quick and easy oil top-up capabilities, even during operation under pressure, ensuring minimal downtime and maximum productivity.
- 4Compatible with a range of viscosities including ISO class VG 32, this lubricator supports various industrial needs and ensures optimal performance in different environments.
- 5Designed to operate within a wide temperature range (0°C to 60°C) and compatible with compressed air of quality class 5.7 to DIN ISO 8573-1, the MS12N-LOE ensures reliable operation in diverse industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 12 | Series | MS |
Mounting position | Vertical +/- 5° | Operating pressure | 1bar 16bar |
Minimum flow rate for lubricator function | 400l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [-:-:-] |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Storage temperature | -10°C 60°C | Oil viscosity | ISO VG 32 |
Ambient temperature | 0°C 60°C | Type of mounting | Optionally: Line installation With accessories |
Housing material | Die-cast aluminum | Material of bowl | Wrought aluminum alloy |
Manufacturer ID | 535044 |
Specifications may be subject to change without notice
