Product Model

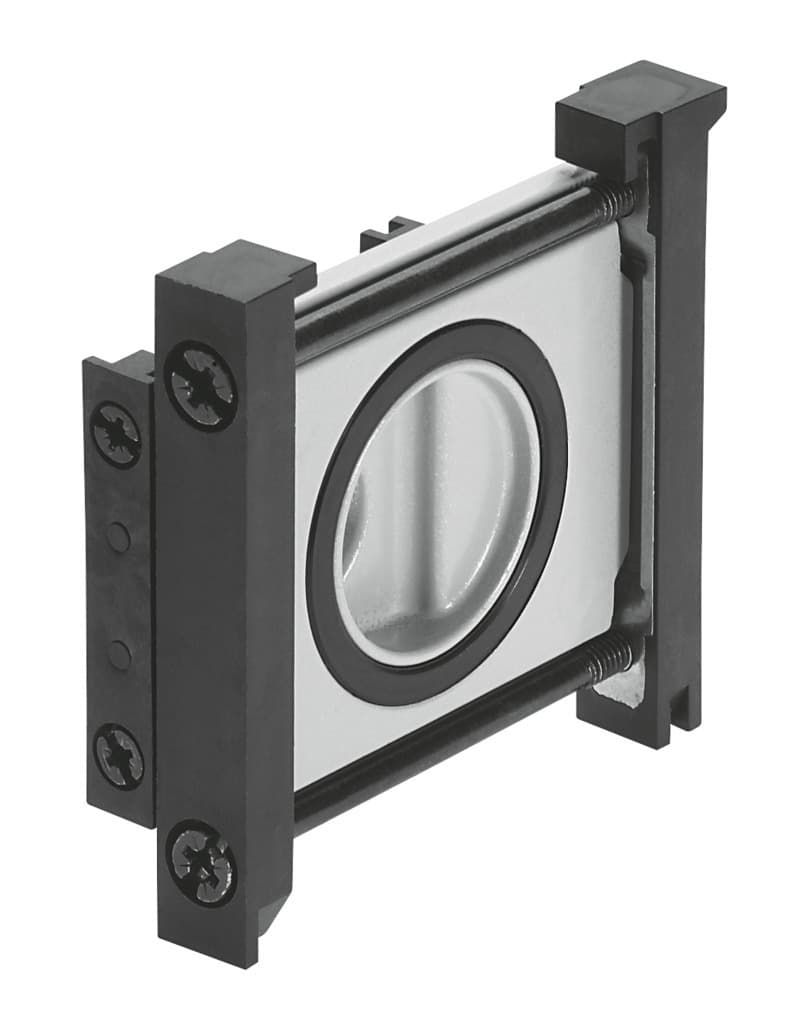

ms4-6-amv
Selling Points
- 1The Festo MS4-6-AMV module connector features a corrosion resistance class of CRC 2, ensuring moderate corrosion stress and reliable performance in various environments.
- 2This module connector operates within a media temperature range of -10 °C to 60 °C, making it suitable for a wide range of applications.
- 3The MS4-6-AMV is RoHS-compliant, using die-cast aluminum for the sub-base and module connector, and NBR for the sealing ring.
- 4It conforms to LABS (PWIS) and VDMA24364-B1/B2-L standards, ensuring high-quality manufacturing and performance.
- 5The module connector weighs 77 grams, providing a compact and lightweight design for easy integration into various systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | -10°C 60°C | Product weight | 77g |
Note on materials | RoHS-compliant | Material of sub-base | Die-cast aluminum |
Sealing ring material | NBR | Module connector material | Die-cast aluminum |
Manufacturer ID | 543489 |
Specifications may be subject to change without notice
