Product Model

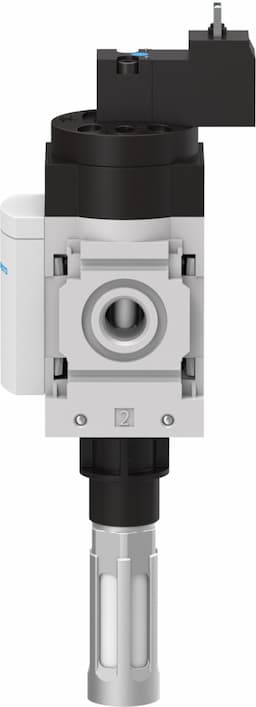

ms4-ee-1/4-10v24-s
Selling Points
- 1Efficient Pneumatic Control: The Festo MS4-EE-1/4-10V24-S is an electrically actuated solenoid shut off valve, ensuring precise control over pneumatic systems with a 3/2-way configuration.
- 2High Flow Rate: With a flow rate of 2000 l/min, this valve is suitable for applications requiring high air flow management, making it ideal for various industrial automation tasks.
- 3Versatile Pressure Range: Operating within a pressure range of 4 to 10 bar, the MS4-EE-1/4-10V24-S can handle diverse pneumatic system demands, ensuring reliable performance under various conditions.
- 4Compact Design: Measuring 40 mm in width, this compact design makes it easy to integrate into existing automation setups without taking up excessive space.
- 5Reliable Operation: Built with high-quality components, the Festo MS4-EE-1/4-10V24-S offers reliable operation and long-lasting performance, reducing the need for frequent replacements and maintenance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Structural design | Piston gate valve | Actuation type | Electrical |
Exhaust air function | Without flow control option | Manual override | Non-detenting |
Reset method | Mechanical spring | Type of control | Pilot-controlled |
Symbol | 00991008 | Valve function | 3/2, closed, monostable |
Operating pressure | 4bar 10bar | Lap | Overlap |
C value | 9.5l/sbar | b-value | 0.44 |
Standard nominal flow rate | 2000l/min | Duty cycle | 100% |
Coil characteristics | 24 V DC: 1.8 W | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
Note on materials | RoHS-compliant | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | -10°C 50°C | Degree of protection | IP65 |
Ambient temperature | -10°C 50°C | For use in the food industry | See supplementary material information |
Type of mounting | Optionally: Line installation With accessories | Mounting position | Any |
Flow direction | Non-reversible | Product weight | 289g |
Pneumatic connection 1 | G1/4 | Pneumatic connection 2 | G? |
Pneumatic connection 3 | G1/4 | Pilot air supply port | Internal |
Electrical connection | Form C Plug as per DIN EN 175301-803 Rectangular design | Seals material | NBR |
Housing material | Die-cast aluminum | Manufacturer ID | 542598 |
Specifications may be subject to change without notice
