Product Model

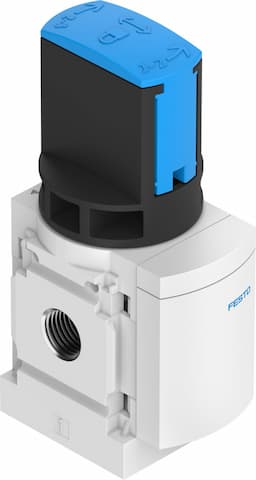

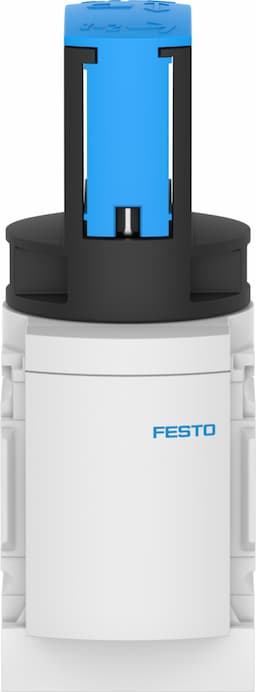

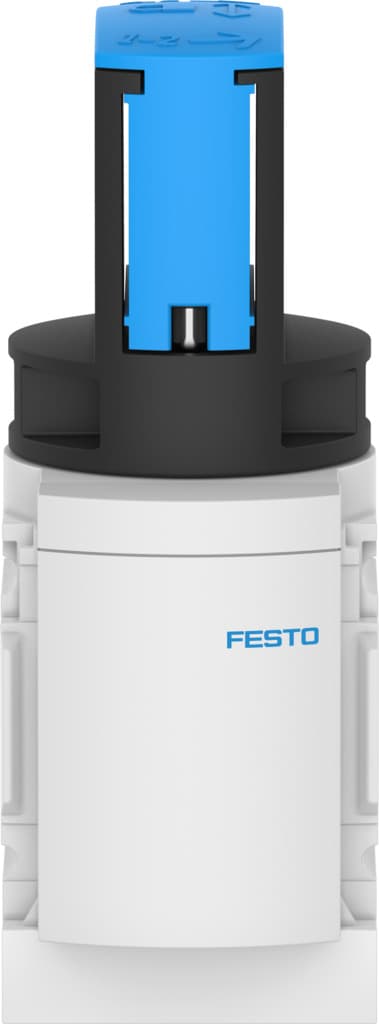

ms4-em1-1/4-f1a
Selling Points
- 1The Festo MS4-EM1-1/4-F1A is a high-performance pneumatic valve designed for precise control in industrial automation systems. Its robust construction ensures reliable operation under various conditions.
- 2This valve features a compact design, making it ideal for space-constrained applications. Its small size does not compromise on functionality, providing efficient air flow regulation.
- 3The MS4-EM1-1/4-F1A is part of Festo's extensive range of pneumatic components, offering a wide variety of configurations to suit different industrial needs. It can be easily integrated into existing systems.
- 4Known for its durability and long service life, the MS4-EM1-1/4-F1A is a cost-effective solution for long-term industrial applications. Its high-quality materials ensure minimal maintenance requirements.
- 5The Festo MS4-EM1-1/4-F1A supports standardized IO-Link technology, facilitating easy communication with sensors and actuators. This enhances system efficiency and reduces complexity in automation processes.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Structural design | Rotary gate valve | Actuation type | Manual |
Exhaust air function | Without flow control option | Type of control | Direct |
Application note | Foreign particles can remain stuck to the product or form during installation. Depending on the application, it may be necessary to purge the product with clean compressed air, clean it after installation and operate it with ducted exhaust air. | Symbol | 00991670 |
Valve function | 3/2, bistable | Operating pressure | 0bar 14bar |
C value | 9l/sbar | b-value | 0.39 |
Standard nominal flow rate | 2200l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
Note on materials | RoHS-compliant | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils | Temperature of medium | -10°C 60°C |
Ambient temperature | -10°C 60°C | For use in the food industry | See supplementary material information |
Type of mounting | Optionally: Line installation With accessories | Mounting position | Any |
Flow direction | Non-reversible | Product weight | 190g |
Pneumatic connection 1 | G1/4 | Pneumatic connection 2 | G? |
Pneumatic connection 3 | G1/4 | Seals material | TPE-U(PU) |
Housing material | Die-cast aluminum | Manufacturer ID | 8183561 |
Specifications may be subject to change without notice
