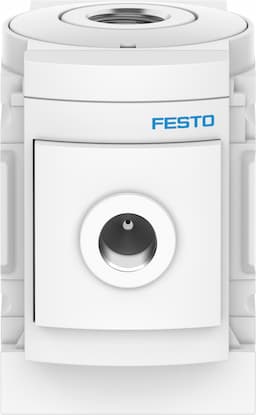

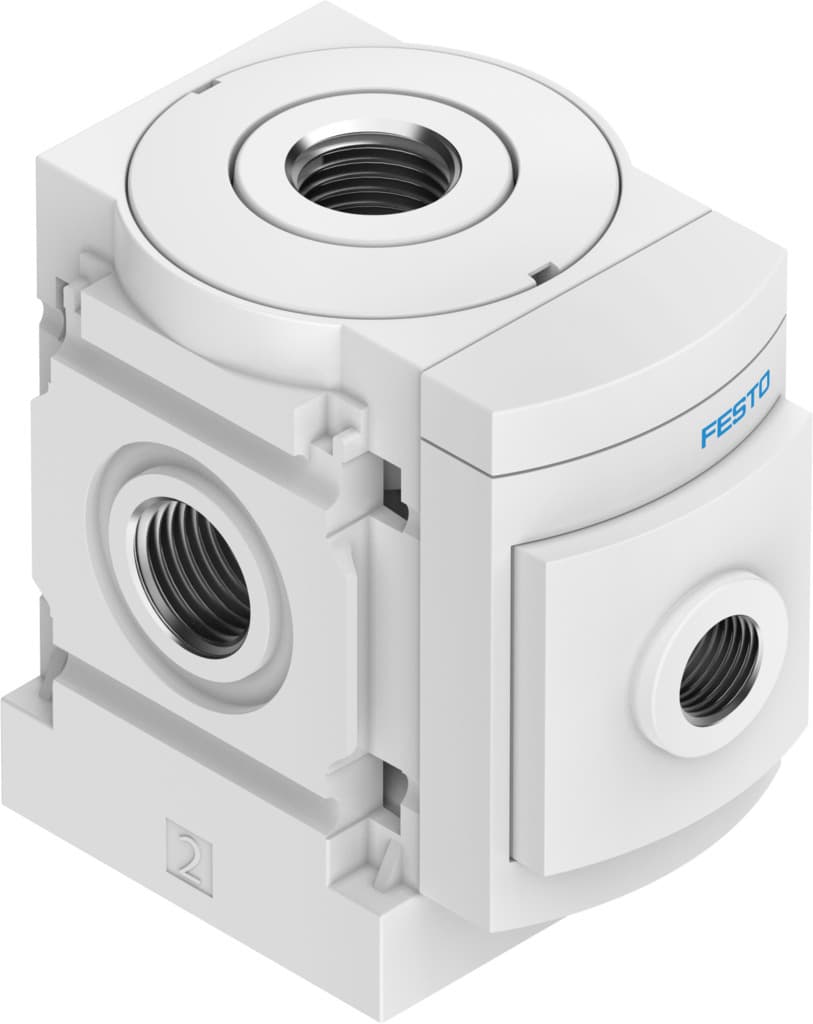

Product Model
ms4-frm-1/4-a8-f1a
Selling Points
- 1The Festo MS4-FRM-1/4-A8-F1A is a compact and reliable pneumatic branching module designed to ensure efficient compressed air distribution in various industrial applications.
- 2This module features a standard nominal flow rate of 1800 liters per minute, making it suitable for a wide range of pneumatic systems.
- 3The MS4-FRM-1/4-A8-F1A conforms to ISO 1179-1 and ISO 228-1 standards, ensuring high-quality performance and compatibility with other Festo products.
- 4It is available in different configurations, including options with and without pressure switches, allowing for customization to meet specific application needs.
- 5The module is easy to integrate into existing systems due to its compact design and standardized connections, enhancing overall system reliability and efficiency.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Application note | Foreign particles can remain stuck to the product or form during installation. Depending on the application, it may be necessary to purge the product with clean compressed air, clean it after installation and operate it with ducted exhaust air. | Mounting position | Any |
Structural design | Branching module | Symbol | 00991510 |
Operating pressure | 0bar 14bar | Standard nominal flow rate in main flow direction 1 -> 2 | 4600l/min |
Standard nominal flow rate outlet at top | 1500l/min | Standard nominal flow rate outlet down | 1500l/min |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils | Storage temperature | -10°C 60°C |
For use in the food industry | See supplementary material information | Temperature of medium | -10°C 60°C |
Ambient temperature | -10°C 60°C | Product weight | 165g |
Pneumatic connection 1 | G1/4 | Pneumatic connection 2 | G? |
Pneumatic connection 3 | G1/4 | Pneumatic connection 4 | G1/4 |
Note on materials | RoHS-compliant | Housing material | Die-cast aluminum |
Manufacturer ID | 8183570 |
Specifications may be subject to change without notice
