Product Model

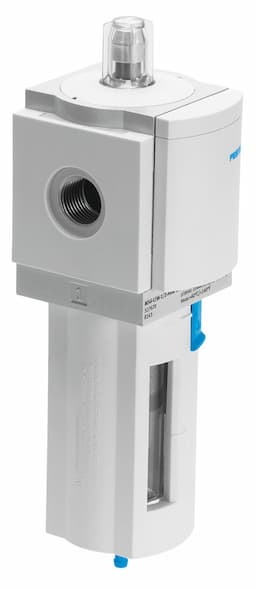

ms4-lfm-1/4-auv-da-z
Selling Points
- 1The MS4-LFM-1/4-AUV-DA-Z air filter offers a filtration grade of 0.01 µm, ensuring 99.9999% filter efficiency and maintaining compressed air quality according to ISO8573-1:2010 standards.
- 2This filter features a fully automatic condensate drain, minimizing downtime and ensuring continuous operation. The condensate volume is limited to 25 ml, making it a reliable choice for compressed air systems.
- 3Equipped with a visual differential pressure display, the MS4-LFM-1/4-AUV-DA-Z allows for easy monitoring of filter performance and maintenance needs. This feature ensures optimal air quality and extends the filter's lifespan.
- 4The filter is designed for line installation with optional accessories, offering flexibility in mounting positions. It can be installed vertically with an angle tolerance of ±5°, making it suitable for various pneumatic system configurations.
- 5The MS4-LFM-1/4-AUV-DA-Z air filter conforms to RoHS standards and is free of copper and PTFE. It also meets EU certification requirements, ensuring compliance with stringent industry standards for pneumatic components.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Series | MS | Size | 4 |
Structural design | Fiber filter | Grade of filtration | 0.01μm |
Condensate drain | Fully automatic Manual, non-detenting | Symbol | 00991544 |
Operating pressure | 2bar 12bar | Operating medium | Compressed air as per ISO 8573-1:2010 [6:4:4] Inert gas |
Air quality class at the output | Compressed air as per ISO?8573-1:2010 [3:4:2] | Max. standard flow rate for air quality class | 360l/min |
Min. standard flow rate for air quality class | 54l/min | Filter efficiency | 99.9999% |
Max. condensate volume | 25ml | Bowl guard | Integrated as metal bowl guard |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
For use in the food industry | See supplementary material information | Temperature of medium | -10°C 60°C |
Ambient temperature | -10°C 60°C | Storage temperature | -10°C 60°C |
Filter efficiency, fine particles | 99.995% | MPPS | 0.05μm |
MPPS filter efficiency | 99.95% | Residual oil content | 0.01mg/m3 |
Filter efficiency, oil aerosol | 99% | Differential pressure display | Visual display |
Type of mounting | Optionally: Line installation With accessories | Mounting position | Vertical +/- 5° |
Pneumatic connection 1 | G1/4 | Pneumatic connection 2 | G? |
Housing material | Die-cast aluminum | Compressed air filter material | Borosilicate fiber |
Material of bowl | Die-cast aluminum Wrought aluminum alloy | Inspection window material | PA |
Seals material | NBR | Note on materials | RoHS-compliant |
Product weight | 350g | Manufacturer ID | 537216 |
Specifications may be subject to change without notice
