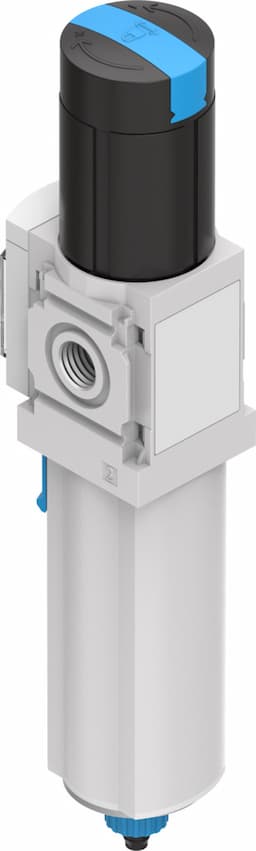

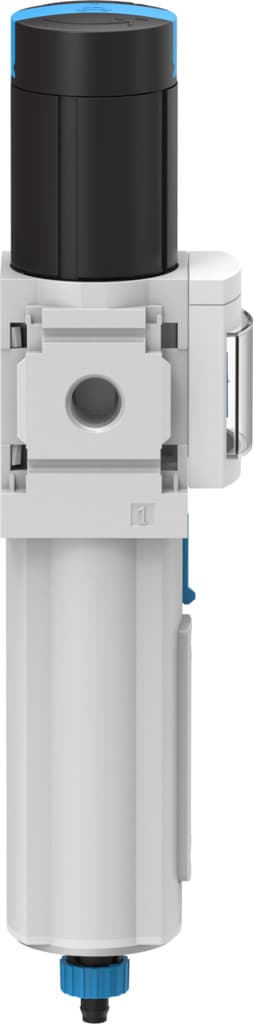

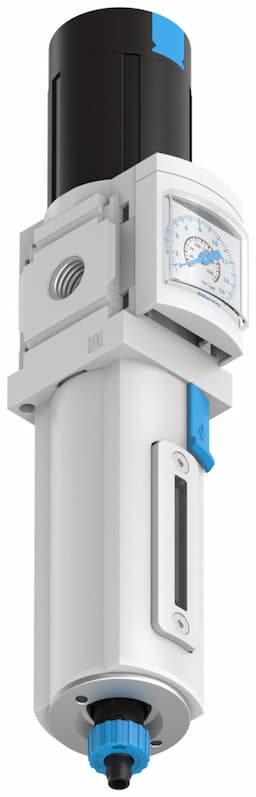

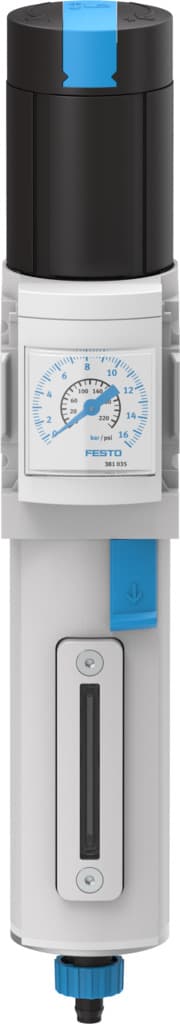

Product Model
ms4-lfr-1/4-d7-cuv-as
Selling Points
- 1The Festo MS4-LFR-1/4-D7-CUV-AS filter regulator ensures high-quality compressed air by filtering out dirt, condensate, and oil particles, ensuring reliable operation in various industrial applications.
- 2This filter regulator features a rotary knob with detent for easy actuation and is designed to meet stringent specifications, ensuring it operates within the limits of technical specifications.
- 3With a filtration grade of 5 μm, the MS4-LFR-1/4-D7-CUV-AS provides efficient air preparation, making it suitable for a wide range of pneumatic systems.
- 4The product is part of the MS series, known for its reliability and durability, with a service-life value B10 of 20 million cycles, making it a well-tried component for safety-related applications.
- 5The MS4-LFR-1/4-D7-CUV-AS is designed to comply with ambient temperature and medium temperature requirements, ensuring optimal performance under various operating conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 4 | Series | MS |
Actuator lock | Rotary knob with detent can be closed with accessories | Mounting position | Vertical +/- 5° |
Grade of filtration | 5μm | Condensate drain | Fully automatic Manual, non-detenting |
Structural design | Filter regulator with pressure gauge | Max. condensate volume | 25ml |
Controller function | Outlet pressure constant With secondary exhausting With return flow function | Bowl guard | Integrated as metal bowl guard |
Degree of condensate separation | 75% | Symbol | 00991587 |
Pressure gauge | with pressure gauge | Operating pressure | 2bar 12bar |
Pressure regulation range | 0.5bar 12bar | Max. pressure hysteresis | 0.25bar |
Standard nominal flow rate | 1200l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:-] Inert gas |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Storage temperature | -10°C 60°C | For use in the food industry | See supplementary material information |
Air quality class at the output | Compressed air as per ISO 8573-1:2010 [6:4:4] | Temperature of medium | -10°C 60°C |
Ambient temperature | -10°C 60°C | Pore size | 5μm |
Product weight | 475g | Type of mounting | Optionally: Front panel mounting Line installation With accessories |
Pneumatic connection 1 | G1/4 | Pneumatic connection 2 | G? |
Note on materials | RoHS-compliant | Material of sub-base | Die-cast aluminum |
Material of operator panel | PA POM | Seals material | NBR |
Compressed air filter material | PE | Housing material | Die-cast aluminum |
Diaphragm material | NBR | Material of bowl | Die-cast aluminum Wrought aluminum alloy |
Inspection window material | PA | Separating disc material | POM |
Manufacturer ID | 535720 |
Specifications may be subject to change without notice
