Product Model

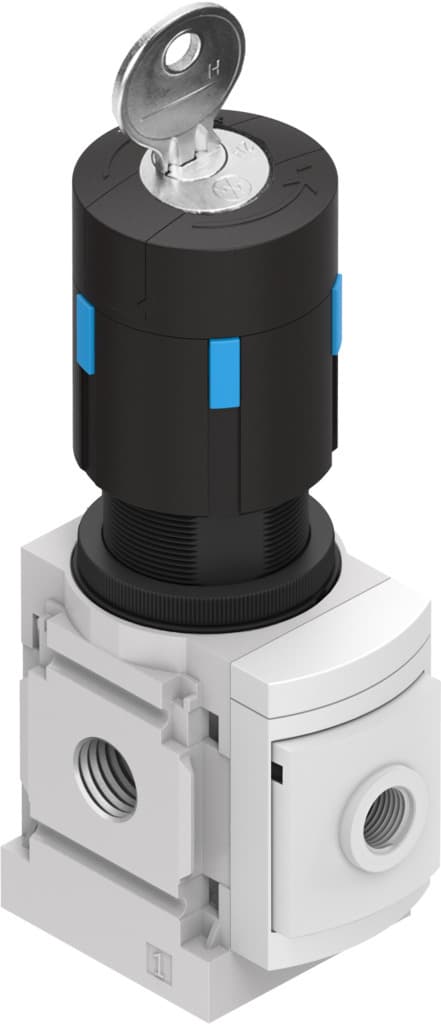

ms4-lr-1/4-d6-a8-e11
Selling Points
- 1The Festo MS4-LR-1/4-D6-A8-E11 filter regulator ensures consistent and high-quality compressed air, crucial for precise industrial processes.
- 2This filter regulator can be integrated into existing systems or used as a standalone unit, offering flexibility in installation and operation.
- 3With standardized pneumatic connections, the MS4-LR-1/4-D6-A8-E11 is easy to connect and integrate into your automation setup.
- 4The product has a well-tried component status with a service life of 20 million cycles, ensuring long-term reliability and minimal maintenance.
- 5The MS4-LR-1/4-D6-A8-E11 complies with ISO 1179-1 and ISO 228-1 standards, ensuring it meets the highest quality and safety requirements.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 4 | Series | MS |
Actuator lock | Rotary knob with integrated lock | Mounting position | Any |
Structural design | Directly controlled diaphragm regulator | Controller function | Outlet pressure constant With secondary exhausting With return flow function |
Symbol | 00991558 | Pressure gauge | G1/8 prepared |
Operating pressure | 0.8bar 14bar | Pressure regulation range | 0.3bar 7bar |
Max. pressure hysteresis | 3.625psi | Standard nominal flow rate | 1800l/min |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Storage temperature | -10°C 60°C | For use in the food industry | See supplementary material information |
Temperature of medium | -10°C 60°C | Ambient temperature | -10°C 60°C |
Product weight | 350g | Type of mounting | Optionally: Front panel mounting Line installation With accessories |
Pneumatic connection 1 | G1/4 | Pneumatic connection 2 | G? |
Note on materials | RoHS-compliant | Material of sub-base | Die-cast aluminum |
Material of operator panel | Aluminum | Seals material | NBR |
Housing material | Die-cast aluminum | Diaphragm material | NBR |
Manufacturer ID | 8190236 |
Specifications may be subject to change without notice
