Product Model

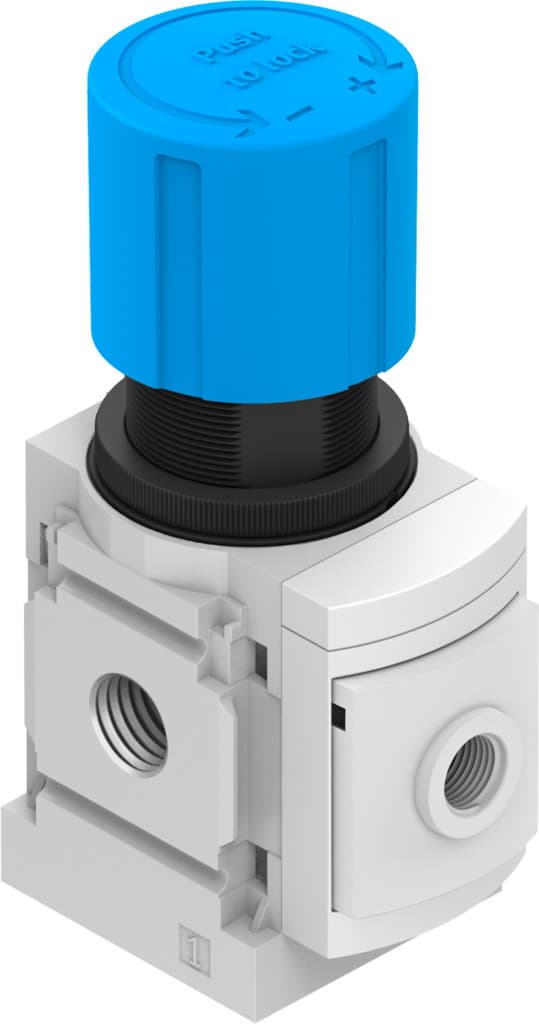

ms4-lr-1/4-d7-a8
Selling Points
- 1High flow rate performance with minimal pressure drop.
- 2Directly actuated diaphragm regulator for precise pressure control.
- 3Actuator lock with rotary knob for secure set values.
- 4Operating pressure range of 0.08 MPa to 1.4 MPa (0.8 bar to 14 bar).
- 5Compliant with ISO 8573-1:2010 and suitable for use with food products.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 4 | Series | MS |
Actuator lock | Rotary knob with detent | Mounting position | Any |
Structural design | Directly controlled diaphragm regulator | Controller function | Outlet pressure constant With secondary exhausting With return flow function |
Symbol | 00991558 | Pressure gauge | G1/8 prepared |
Operating pressure | 0.8bar 14bar | Pressure regulation range | 0.5bar 12bar |
Max. pressure hysteresis | 3.625psi | Standard nominal flow rate | 1700l/min |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Storage temperature | -10°C 60°C | For use in the food industry | See supplementary material information |
Temperature of medium | -10°C 60°C | Ambient temperature | -10°C 60°C |
Product weight | 225g | Type of mounting | Optionally: Front panel mounting Line installation With accessories |
Pneumatic connection 1 | G1/4 | Pneumatic connection 2 | G? |
Note on materials | RoHS-compliant | Material of sub-base | Die-cast aluminum |
Material of operator panel | PA POM | Seals material | NBR |
Housing material | Die-cast aluminum | Diaphragm material | NBR |
Manufacturer ID | 610772 |
Specifications may be subject to change without notice
