Product Model
ms4-lr-1/4-d7-vs-dm1
Selling Points

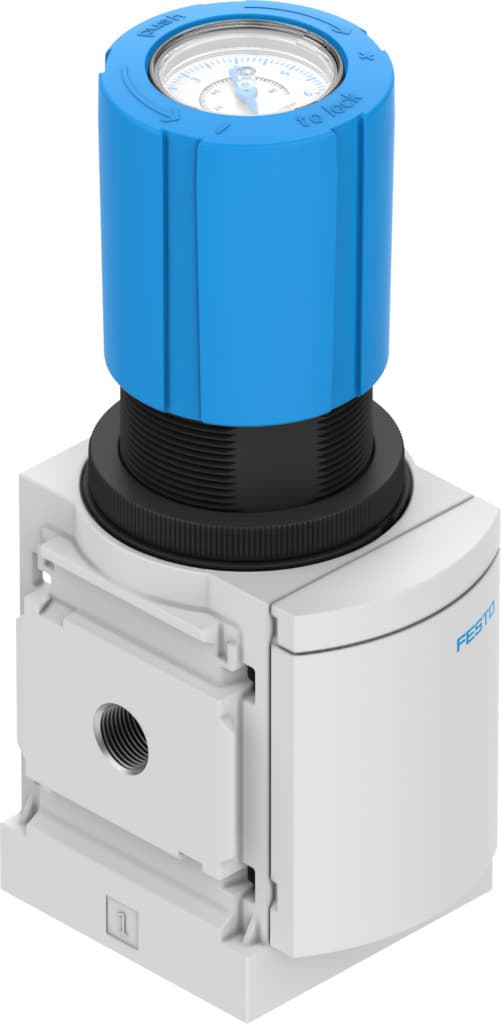

- 1The Festo MS4-LR-1/4-D7-AS pressure regulator offers a pressure regulation range of 0.5 to 12 bar, making it suitable for a wide range of industrial applications.
- 2This pressure regulator features a compact design with a rotary knob and integrated pressure gauge, providing easy operation and precise pressure control.
- 3The MS4-LR-1/4-D7-AS conforms to ISO 1179-1 and ISO 228-1 standards, ensuring high-quality and reliable performance in various environments.
- 4With its small DM1 rotary knob pressure gauge, this regulator is ideal for applications where space is limited, offering a compact solution without compromising on functionality.
- 5The Festo MS4-LR-1/4-D7-AS is part of the MS series, known for its modern design and high flow rates, making it an efficient choice for industrial automation systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 4 | Series | MS |
Actuator lock | Rotary knob with detent | Mounting position | Any |
Structural design | Directly controlled diaphragm regulator | Controller function | Outlet pressure constant With secondary exhausting With return flow function |
Symbol | 00991559 | Pressure gauge | with pressure gauge in rotary knob |
Operating pressure | 0.8bar 14bar | Pressure regulation range | 0.5bar 12bar |
Max. pressure hysteresis | 5.8psi | Standard nominal flow rate | 800l/min |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Storage temperature | -10°C 60°C | For use in the food industry | See supplementary material information |
Temperature of medium | -10°C 60°C | Ambient temperature | -10°C 60°C |
Product weight | 225g | Type of mounting | Optionally: Front panel mounting Line installation With accessories |
Pneumatic connection 1 | G1/4 | Pneumatic connection 2 | G? |
Note on materials | RoHS-compliant | Material of sub-base | Die-cast aluminum |
Material of operator panel | PA POM | Seals material | NBR |
Housing material | Die-cast aluminum | Diaphragm material | NBR |
Manufacturer ID | 8190242 |
Specifications may be subject to change without notice
