Product Model

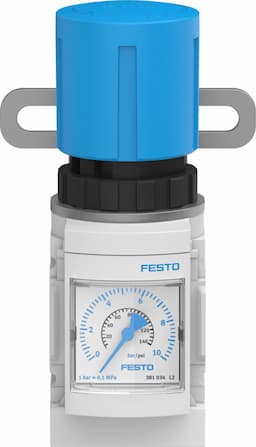

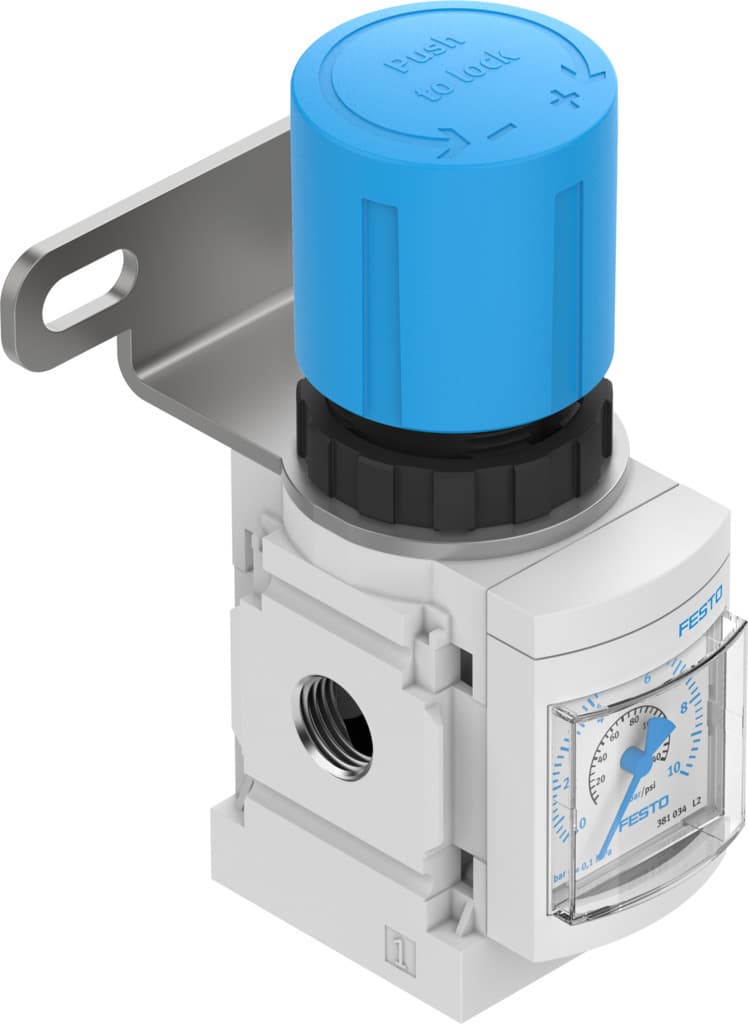

ms4-lr-1/4-d7-wr
Selling Points
- 1High Flow Rate: The Festo MS4-LR-1/4-D7-WR pressure regulator offers a flow rate of 1700 liters per minute, making it suitable for demanding pneumatic applications.
- 2Precision Pressure Control: This regulator maintains a constant working pressure, ensuring reliable performance and minimal pressure drop, even with varying input pressures.
- 3Wide Pressure Regulation Range: With an outlet pressure range of 0.5 to 12 bar, the MS4-LR-1/4-D7-WR is versatile and can be used in various industrial settings.
- 4Robust Construction: Built with durable materials like die-cast aluminum and NBR seals, this regulator is designed for long-lasting performance and resistance to corrosion.
- 5User-Friendly Design: Equipped with a rotary knob and detent actuator lock, the MS4-LR-1/4-D7-WR is easy to operate and maintain, ensuring set values are secured.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 4 | Series | MS |
Actuator lock | Rotary knob with detent | Mounting position | Any |
Structural design | Directly controlled diaphragm regulator | Controller function | Outlet pressure constant With secondary exhausting With return flow function |
Symbol | 00991558 | Pressure gauge | with pressure gauge |
Operating pressure | 0.8bar 14bar | Pressure regulation range | 0.5bar 12bar |
Max. pressure hysteresis | 3.625psi | Standard nominal flow rate | 1700l/min |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Storage temperature | -10°C 60°C | For use in the food industry | See supplementary material information |
Temperature of medium | -10°C 60°C | Ambient temperature | -10°C 60°C |
Product weight | 225g | Type of mounting | Optionally: Front panel mounting Line installation With accessories |
Pneumatic connection 1 | G1/4 | Pneumatic connection 2 | G? |
Note on materials | RoHS-compliant | Material of sub-base | Die-cast aluminum |
Material of operator panel | PA POM | Seals material | NBR |
Housing material | Die-cast aluminum | Diaphragm material | NBR |
Manufacturer ID | 8190243 |
Specifications may be subject to change without notice
