Product Model

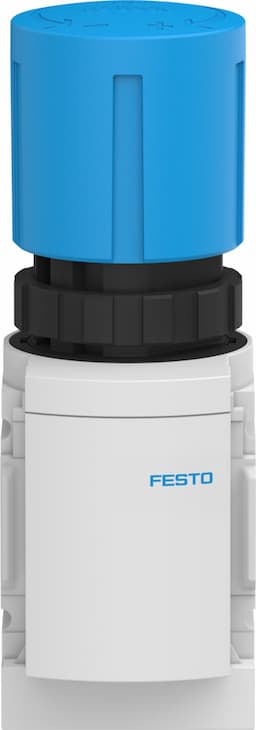

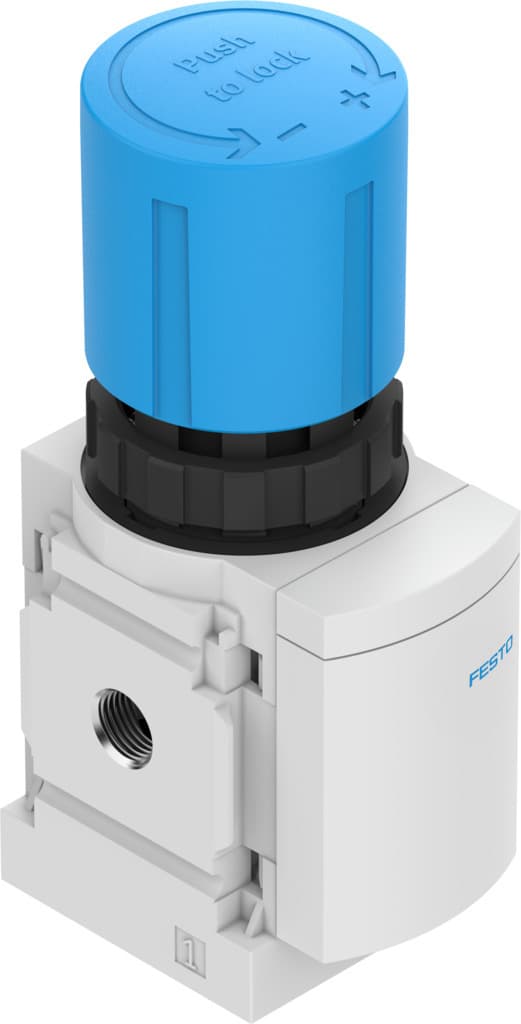

ms4-lr-1/8-d5-vs-os
Selling Points
- 1The MS4-LR-1/8-D5-VS-OS pressure regulator offers high flow rates with minimal pressure, making it suitable for applications requiring efficient air supply.
- 2This pressure regulator is designed to achieve maximum flow rates with minimal space requirements, perfect for installations in tight control panels.
- 3Equipped with a 4-pin IO-Link connection, this regulator supports various communication protocols (PNP, NPN, 0...10 V, 1...5 V, 4...20 mA) for seamless integration.
- 4The MS4-LR series is renowned for its good control characteristics with low hysteresis and primary pressure compensation, ensuring precise pressure regulation.
- 5Built with durable materials and designed for moderate corrosion resistance, this pressure regulator is reliable and long-lasting in industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 4 | Series | MS |
Actuator lock | Rotary knob with detent | Mounting position | Any |
Structural design | Directly controlled diaphragm regulator | Controller function | Outlet pressure constant With secondary exhausting With return flow function |
Symbol | 00991559 | Operating pressure | 0.8bar 14bar |
Pressure regulation range | 0.3bar 4bar | Max. pressure hysteresis | 3.625psi |
Standard nominal flow rate | 1200l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | -10°C 60°C |
For use in the food industry | See supplementary material information | Temperature of medium | -10°C 60°C |
Ambient temperature | -10°C 60°C | Product weight | 225g |
Type of mounting | Optionally: Front panel mounting Line installation With accessories | Pneumatic connection 1 | G1/8 |
Pneumatic connection 2 | G1/8 | Note on materials | RoHS-compliant |
Material of sub-base | Die-cast aluminum | Material of operator panel | PA POM |
Seals material | NBR | Housing material | Die-cast aluminum |
Diaphragm material | NBR | Manufacturer ID | 8190232 |
Specifications may be subject to change without notice
