Product Model
ms4-mv1-f1a
Selling Points

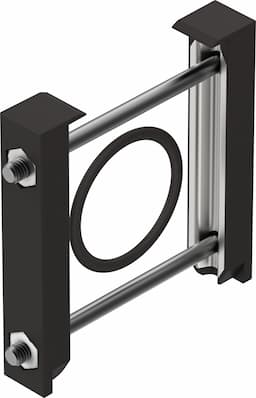

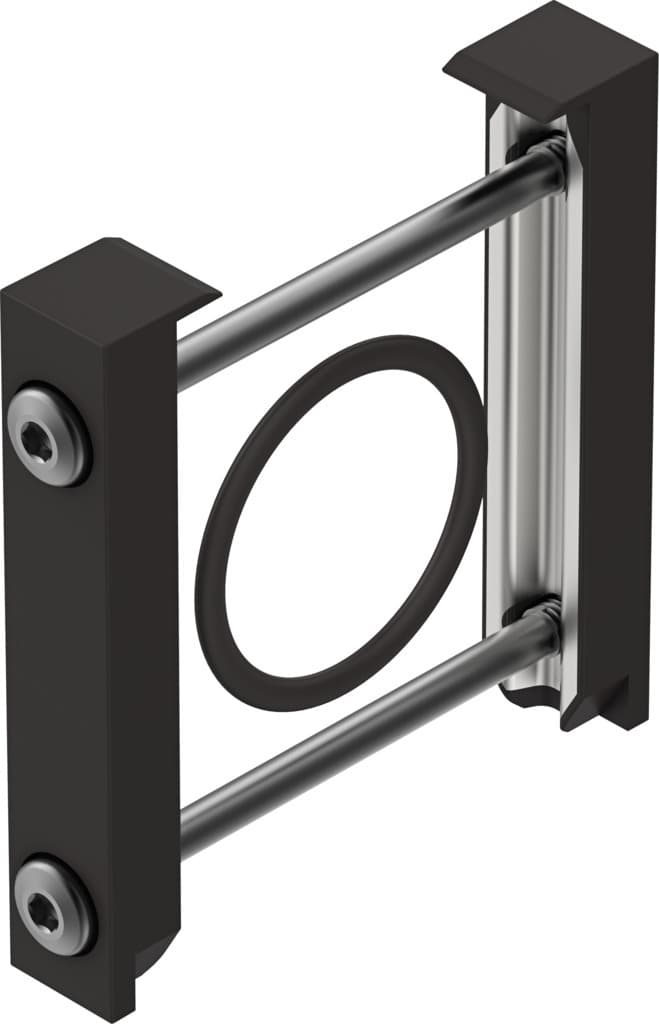

- 1The MS4-MV1-F1A module connector features a moderate corrosion resistance class (CRC 2), ensuring reliable performance in various industrial environments.
- 2This module connector is recommended for production facilities manufacturing lithium-ion batteries, adhering to specific material exclusions.
- 3It operates within a temperature range of -10 °C to 60 °C, making it versatile for different industrial settings.
- 4The MS4-MV1-F1A is RoHS-compliant, ensuring it meets environmental regulations and is free from hazardous materials.
- 5Weighing 36 grams, this module connector is compact and lightweight, ideal for integrating into complex automation systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 4 | Series | MS |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils | Temperature of medium | -10°C 60°C |
Product weight | 36g | Note on materials | RoHS-compliant |
Seals material | NBR | Module connector material | POM High-alloy stainless steel |
Material of screws | High-alloy stainless steel | Manufacturer ID | 8176695 |
Specifications may be subject to change without notice
