Product Model
ms4n-de-1/8-v110
Selling Points

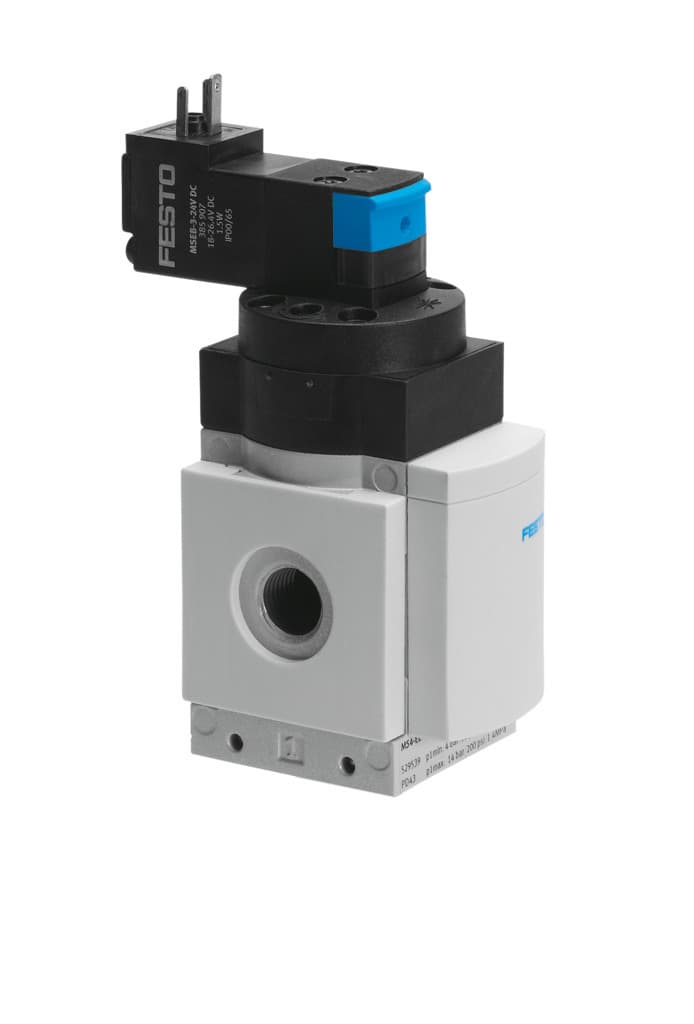

- 1The Festo MS4N-DE-1/8-V110 soft start valve features electric actuation, ensuring precise control over pneumatic systems. Its non-detenting and detenting manual override options provide flexibility in operation.
- 2This valve is designed with a piston seat and mechanical spring reset, enhancing its reliability and durability. It operates within a wide temperature range (-10°C to 60°C) and supports both lubricated and non-lubricated conditions.
- 3The MS4N-DE-1/8-V110 is built with a die-cast aluminum housing and features NBR material seals, ensuring high corrosion resistance and durability. It is also RoHS-compliant, making it environmentally friendly.
- 4This valve supports a wide operating pressure range from 4 bar to 14 bar and includes internal pilot air supply for efficient operation. It is suitable for use with inert gases and compressed air to ISO 8573-1:2010 standards.
- 5The Festo MS4N-DE-1/8-V110 soft start valve offers a 2-year warranty and is recognized by C UL US (OL) approval. It also features a signal status display and is designed for in-line installation, making it easy to integrate into various pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Actuation type | Electrical | Mounting position | Any |
Manual override | Detenting Non-detenting | Structural design | Piston seat |
Reset method | Mechanical spring | Type of control | Pilot-controlled |
Pilot air supply port | Internal | Flow direction | Non-reversible |
Symbol | 00991501 | Valve function | 2/2 |
Switching position indication | with accessories | Operating pressure | 4bar 14bar |
b-value | 0.5 | C value | 4.6l/sbar |
Standard nominal flow rate | 1000l/min | Duty cycle | 100% |
Coil characteristics | 110 V AC: 50/60 Hz, initial power 3.0 VA, holding power 2.4 VA | Certification | c UL us - Recognized (OL) |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
For use in the food industry | See supplementary material information | Temperature of medium | -10°C 60°C |
Degree of protection | IP65 | Ambient temperature | -10°C 60°C |
Product weight | 263g | Electrical connection | Form C Plug as per DIN EN 175301-803 Rectangular design |
Signal status display | With accessories | Type of mounting | Optionally: Line installation With accessories |
Pneumatic connection 1 | 1/8 NPT | Pneumatic connection 2 | 1/8 NPT |
Note on materials | RoHS-compliant | Seals material | NBR |
Housing material | Die-cast aluminum | Manufacturer ID | 532004 |
Specifications may be subject to change without notice
