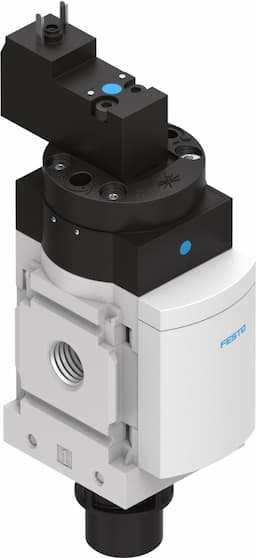

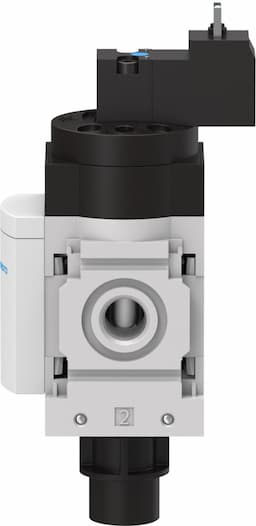

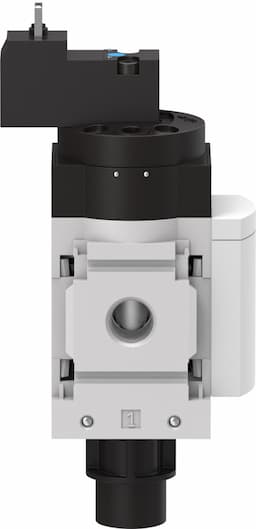

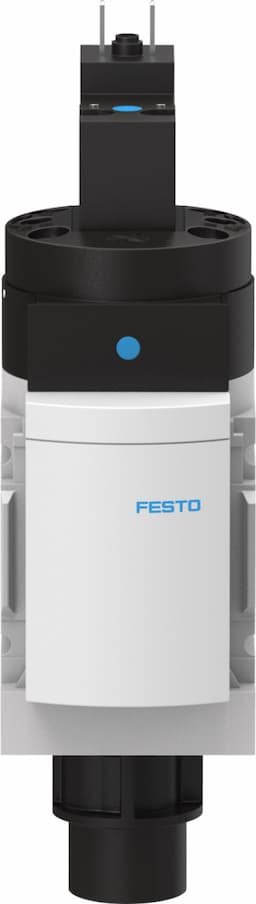

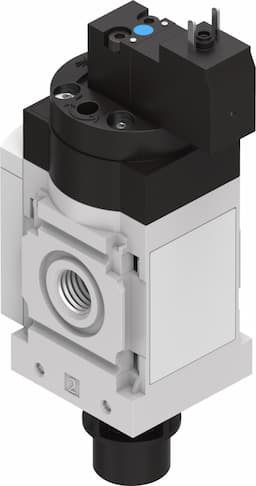

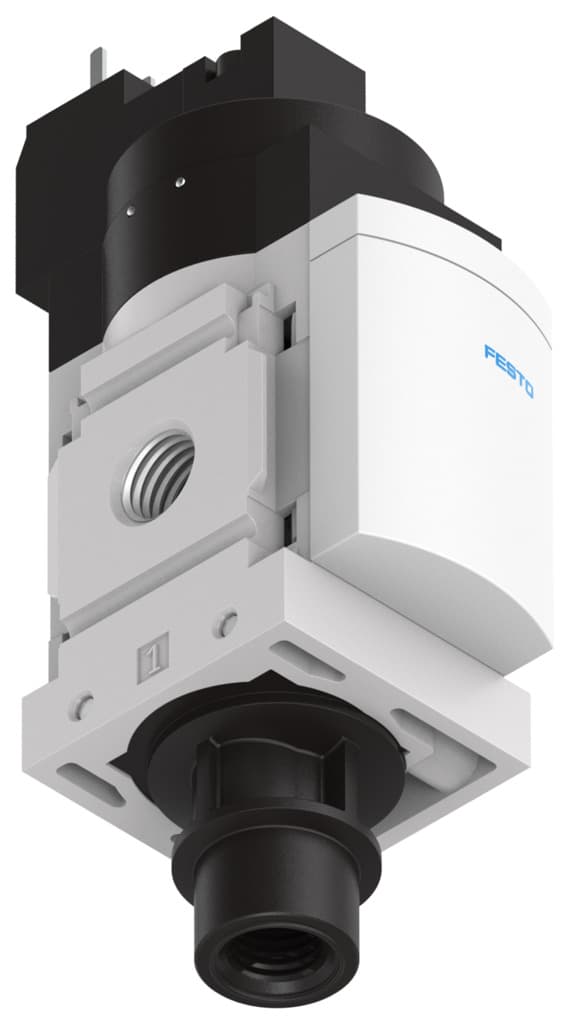

Product Model
ms4n-ee-1/4-v230
Selling Points
- 1The Festo MS4N-EE-1/4-V230 on-off valve ensures reliable pneumatic control with a non-reversible flow direction, making it suitable for various industrial applications.
- 2This valve features moderate corrosion resistance (CRC 2) according to Festo standard 940 070, ensuring durability in normal industrial environments.
- 3The MS4N-EE-1/4-V230 operates within a pressure range of 4 to 10 bar and has a standard nominal flow rate of 2,000 l/min, making it efficient for compressed air systems.
- 4The valve is designed with a mechanical spring reset and a direct piloting mechanism, providing precise control and reliability in operation.
- 5With an operating temperature range of -10 to 60 °C and a service-life value of 0.35 million cycles, the MS4N-EE-1/4-V230 is a well-tried component for safety-related applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Structural design | Piston gate valve | Actuation type | Electrical |
Exhaust air function | Without flow control option | Manual override | Detenting Non-detenting |
Reset method | Mechanical spring | Type of control | Pilot-controlled |
Symbol | 00991008 | Valve function | 3/2, closed, monostable |
Operating pressure | 4bar 14bar | Lap | Overlap |
C value | 9.5l/sbar | b-value | 0.44 |
Standard nominal flow rate | 2000l/min | Duty cycle | 100% |
Coil characteristics | 230 V AC: 50/60 Hz, initial power 3.0 VA, holding power 2.4 VA | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
Note on materials | RoHS-compliant | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | -10°C 60°C | Degree of protection | IP65 |
Ambient temperature | -10°C 60°C | For use in the food industry | See supplementary material information |
Type of mounting | Optionally: Line installation With accessories | Mounting position | Any |
Flow direction | Non-reversible | Product weight | 273g |
Pneumatic connection 1 | 1/4 NPT | Pneumatic connection 2 | 1/4 NPT |
Pneumatic connection 3 | G1/4 | Pilot air supply port | Internal |
Electrical connection | Form C Plug as per DIN EN 175301-803 Rectangular design | Seals material | NBR |
Housing material | Die-cast aluminum | Manufacturer ID | 532087 |
Specifications may be subject to change without notice
