Product Model

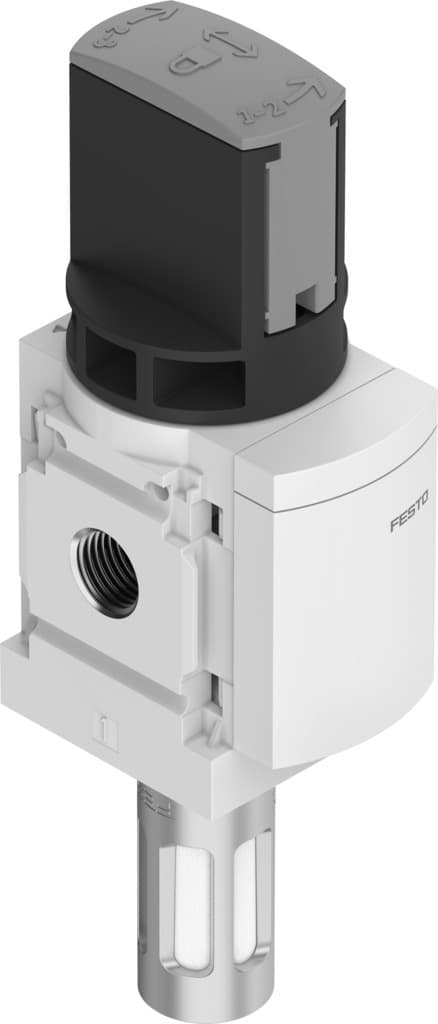

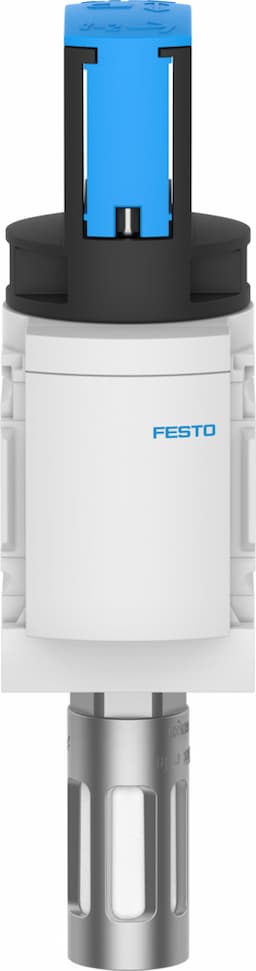

ms4n-em1-1/4-s
Selling Points
- 1The Festo MS4N-EM1-1/4-S pneumatic valve offers moderate corrosion resistance according to Festo standard 940 070, making it suitable for various industrial environments.
- 2This valve features a standard operating pressure of 0 to 206 psi and a nominal flow rate of 42.4 scfm in the main flow direction.
- 3The MS4N-EM1-1/4-S is designed for use with compressed air, which can be filtered or unfiltered, and has a filtration grade of 40 μm.
- 4The valve is available with various coil parameters including 24 V DC, 110 V AC, and 230 V AC, ensuring compatibility with different control systems.
- 5The MS4N-EM1-1/4-S pneumatic valve is part of Festo's extensive product range, offering a one-stop solution for automation needs with easy ordering and procurement options.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Structural design | Rotary gate valve | Actuation type | Manual |
Exhaust air function | Without flow control option | Type of control | Direct |
Symbol | 00991670 | Valve function | 3/2, bistable |
Operating pressure | 0bar 14bar | C value | 9l/sbar |
b-value | 0.39 | Standard nominal flow rate | 2200l/min |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | Note on materials | RoHS-compliant |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -10°C 60°C |
Ambient temperature | -10°C 60°C | For use in the food industry | See supplementary material information |
Type of mounting | Optionally: Line installation With accessories | Mounting position | Any |
Flow direction | Non-reversible | Product weight | 210g |
Pneumatic connection 1 | 1/4 NPT | Pneumatic connection 2 | 1/4 NPT |
Pneumatic connection 3 | Not ducted | Seals material | TPE-U(PU) |
Housing material | Die-cast aluminum | Manufacturer ID | 541281 |
Specifications may be subject to change without notice
