Product Model
ms4n-em1-1/4-s-z

Selling Points

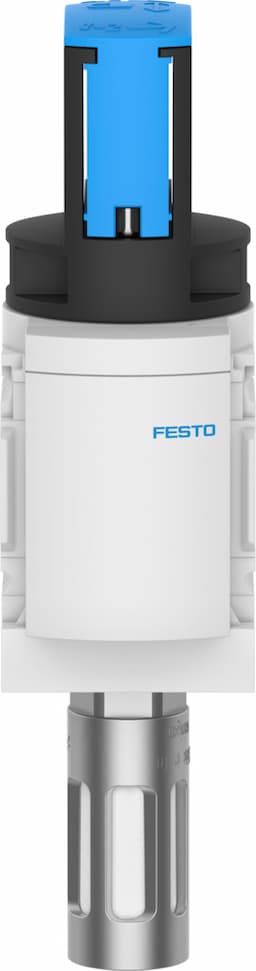

- 1The Festo MS4N-EM1-1/4-S-Z is a 3/2-way manually-actuated on-off valve designed for precise control in pneumatic systems. It features a silencer for reduced noise and non-reversible flow direction from right to left.
- 2This valve is engineered to ensure reliable operation in various industrial applications, including pressurizing and controlling pneumatic components. Its robust design and high-quality materials guarantee long-lasting performance.
- 3The MS4N-EM1-1/4-S-Z is part of Festo's extensive range of pneumatic valves, offering standardized dimensions and mounting interfaces for easy integration into existing systems. It supports both universal and application-specific configurations.
- 4This valve is suitable for a wide range of industries, including manufacturing, robotics, and automation. Its compact size and efficient operation make it an ideal choice for applications requiring precise control and minimal noise.
- 5The Festo MS4N-EM1-1/4-S-Z is backed by Festo's commitment to quality and innovation. With over 80 years of global experience, Festo ensures that its products meet the highest standards of performance, reliability, and customer support.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Parameter | Value | Parameter | Value |
---|---|---|---|
Structural design | Rotary gate valve | Actuation type | Manual |
Exhaust air function | Without flow control option | Type of control | Direct |
Symbol | 00991670 | Valve function | 3/2, bistable |
Operating pressure | 0bar 14bar | C value | 9l/sbar |
b-value | 0.39 | Standard nominal flow rate | 2200l/min |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | Note on materials | RoHS-compliant |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -10°C 60°C |
Ambient temperature | -10°C 60°C | For use in the food industry | See supplementary material information |
Type of mounting | Optionally: Line installation With accessories | Mounting position | Any |
Flow direction | Non-reversible | Product weight | 210g |
Pneumatic connection 1 | 1/4 NPT | Pneumatic connection 2 | 1/4 NPT |
Pneumatic connection 3 | Not ducted | Seals material | TPE-U(PU) |
Housing material | Die-cast aluminum | Manufacturer ID | 541282 |
Specifications may be subject to change without notice
