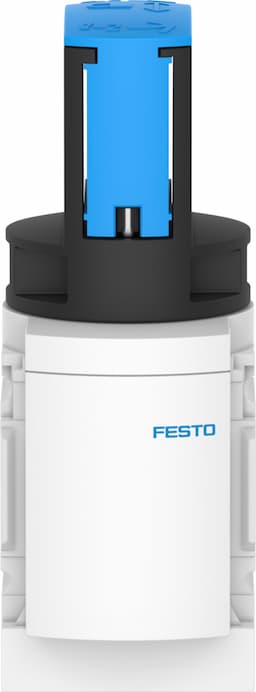

Festo MS4N-EM1-1/8 On/Off Valve - Reliable Pneumatic Control

Selling Points

1The Festo MS4N-EM1-1/8 is a rotary gate valve designed for manual actuation, ensuring precise control over pneumatic systems.
2This valve operates within a pressure range of 0 to 1.4 MPa (0 to 14 bar), making it suitable for a variety of industrial applications.
3The MS4N-EM1-1/8 features a standard nominal flow rate of 1200 l/min, as standardized to DIN 1343, providing efficient airflow management.
4The valve is constructed from die-cast aluminum with TPE-U(PU) seals, ensuring durability and resistance to moderate corrosion.
5The MS4N-EM1-1/8 is compatible with compressed air to ISO 8573-1:2010 and inert gases, making it versatile for different operating mediums.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Structural design	Rotary gate valve	Actuation type	Manual
Exhaust air function	Without flow control option	Type of control	Direct
Symbol	00991670	Valve function	3/2, bistable
Operating pressure	0bar 14bar	C value	4.6l/sbar
b-value	0.51	Standard nominal flow rate	1200l/min
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	Note on materials	RoHS-compliant
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Temperature of medium	-10°C 60°C
Ambient temperature	-10°C 60°C	For use in the food industry	See supplementary material information
Type of mounting	Optionally: Line installation With accessories	Mounting position	Any
Flow direction	Non-reversible	Product weight	190g
Pneumatic connection 1	1/8 NPT	Pneumatic connection 2	1/8 NPT
Pneumatic connection 3	1/4 NPT	Seals material	TPE-U(PU)
Housing material	Die-cast aluminum	Manufacturer ID	541284

Specifications may be subject to change without notice
